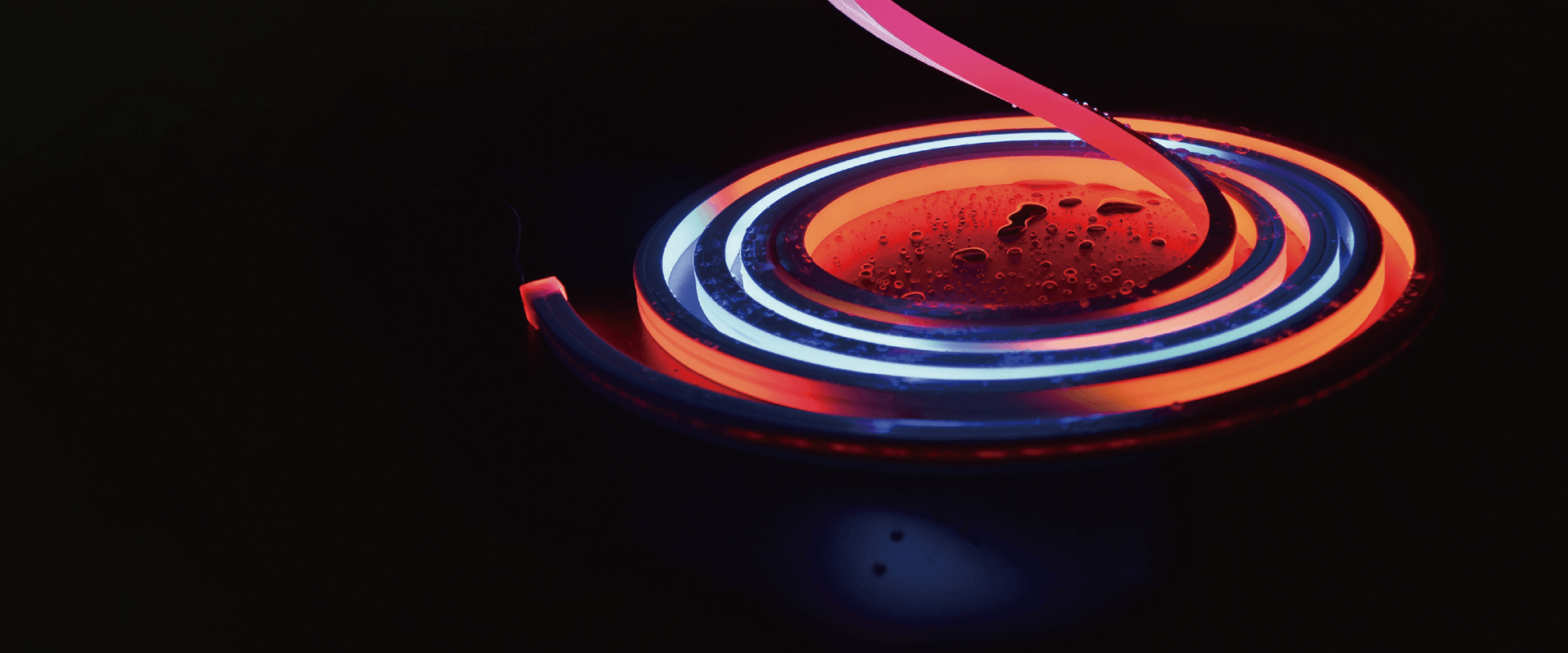

Pixel Neon IP67

Description

---

Colorful digital LED neon in white color, RGB, RGBW with completed accessories system to help you easily set up. It can controlled by SPI or DMX512, the signals connection is stable and quick. To realize color-changing effects, gradients, chases, pulsating patterns, and animations. These effects can be easily programmed and synchronized for captivating visual displays.

SILASTIC™Material

Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.

DMX & SPI

Digital LED neon in white color, RGB, RGBW by DMX512 or SPI control.

Installation

Complete accessories system including pixel controllers, remote, signals cable, conectors, profiles, etc.

---

Different Models

Product Name

Dimension

Voltage

CCT

Power(W/M)

Min Cut Unit

IP Rating

Pixels/M

Signal

Note the picture

---

ELITE PIXEL 1615 SV

16*15mm

DC24V

DIGITAL RGB  DIGITAL RGBW

12W/14.5W/ 15W/M

125mm

IP67

8pcs

DMX512

---

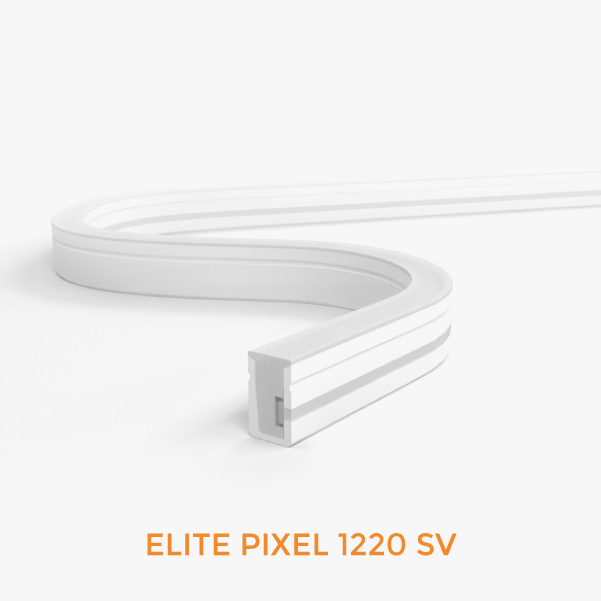

ELITE PIXEL 1220 SV

12*20mm

DC24V

DIGITAL RGB  DIGITAL RGBW

12W/14.5W/ 15W/M

125mm

IP67

8pcs

DMX512

---

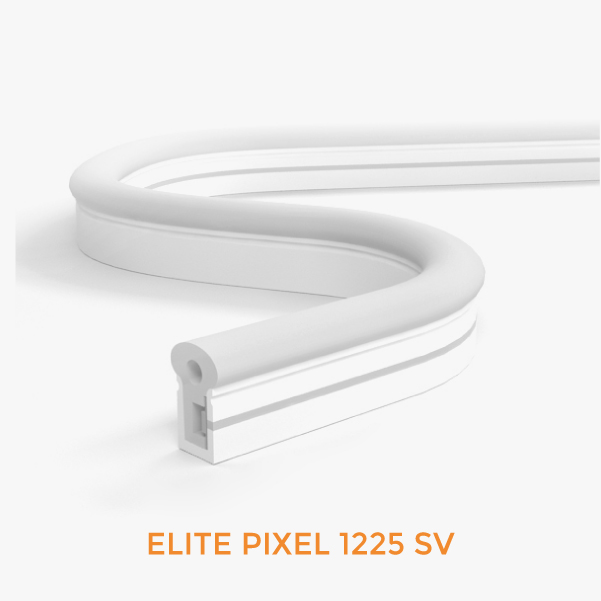

ELITE PIXEL 1225 SV

12*25mm

DC24V

DIGITAL RGB  DIGITAL RGBW

12W/14.5W/ 15W/M

125mm

IP67

8pcs

DMX512

---

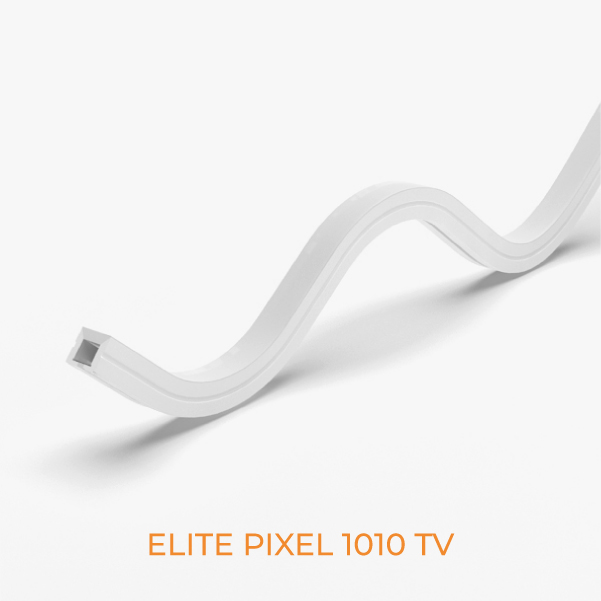

ELITE PIXEL 1010 TV

10*10mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI

---

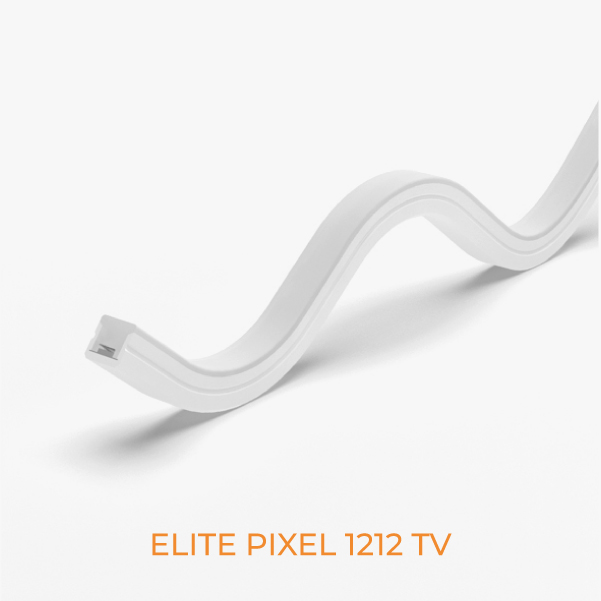

ELITE PIXEL 1212 TV

12*12mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI

---

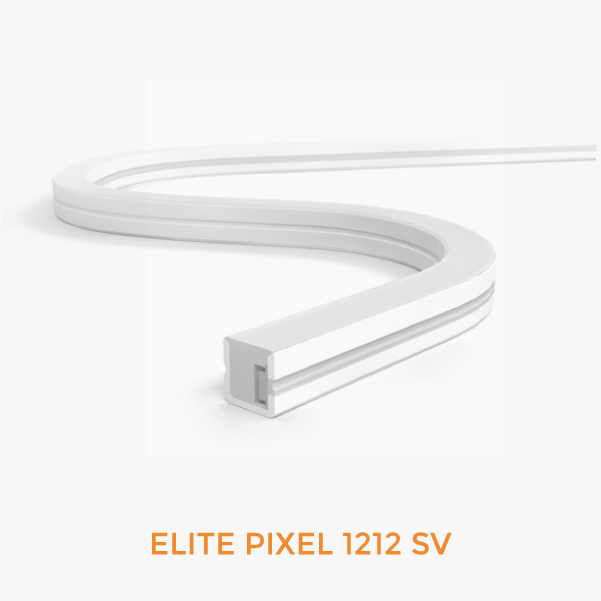

ELITE PIXEL 1212 SV

12*12mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI

---

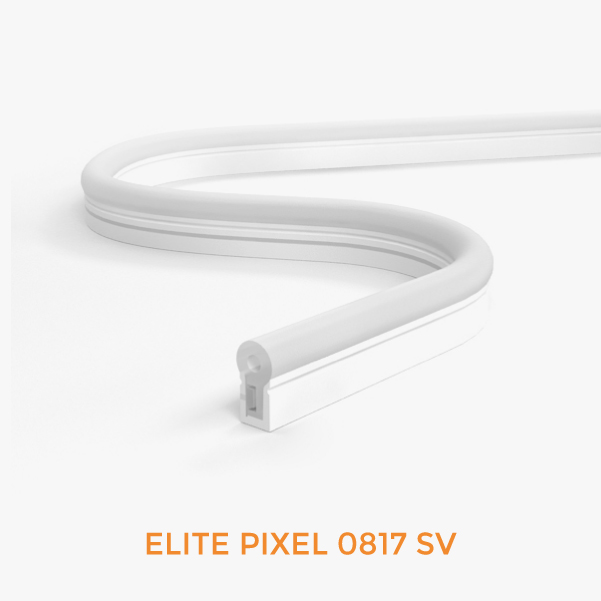

ELITE PIXEL 0817 SV

8*17mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI

---

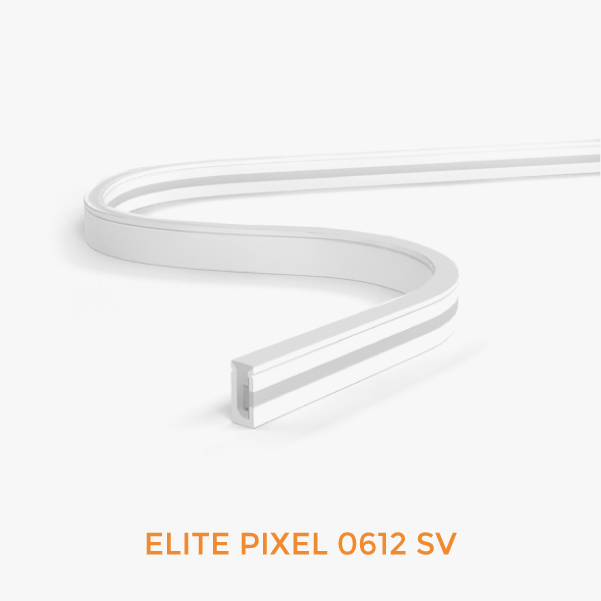

ELITE PIXEL 0612 SV

6*12mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI

---

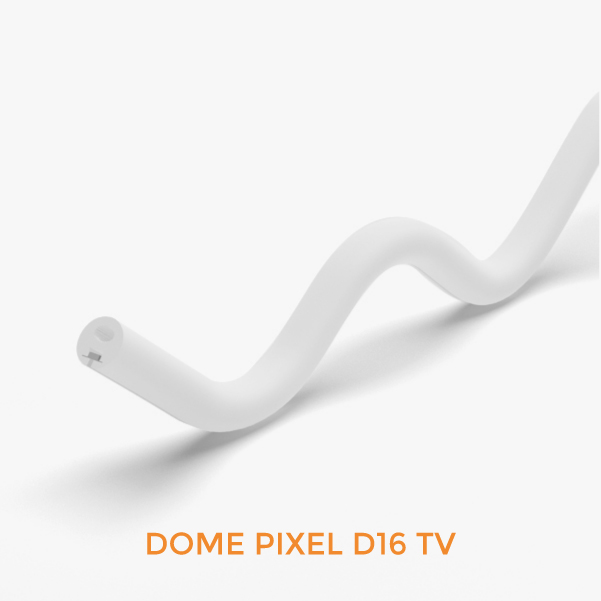

DOME PIXEL D16 TV

16*15.5mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI

---

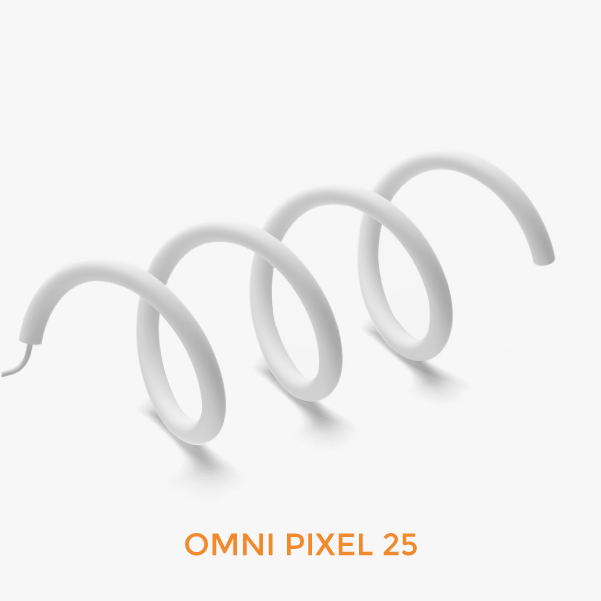

OMNI PIXEL 25

25mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI

---

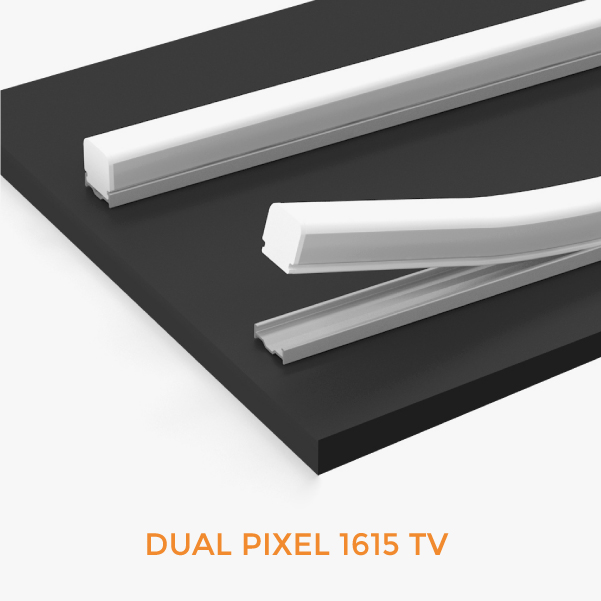

DUAL PIXEL 1615 TV

16*15mm

DC24V

DIGITAL RGB  DIGITAL RGBW

12W/15W/M

125mm

IP67

8pcs

SPI

---

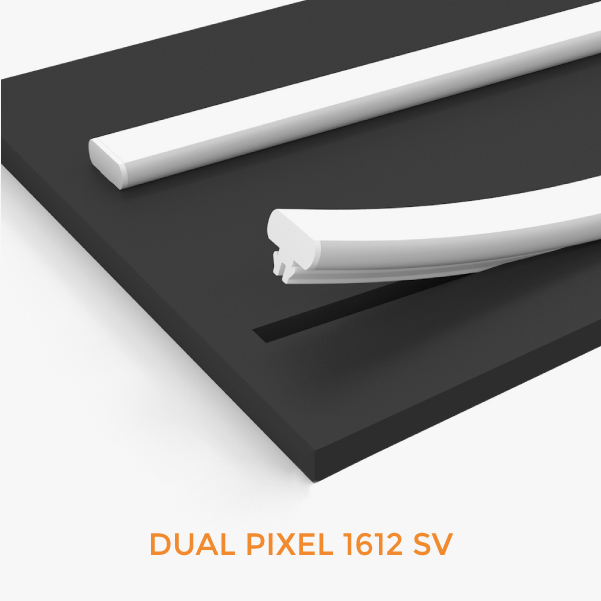

DUAL PIXEL 1612 SV

16*12mm

DC24V

DIGITAL RGB

12.5W/M

100mm

IP67

10pcs

SPI
