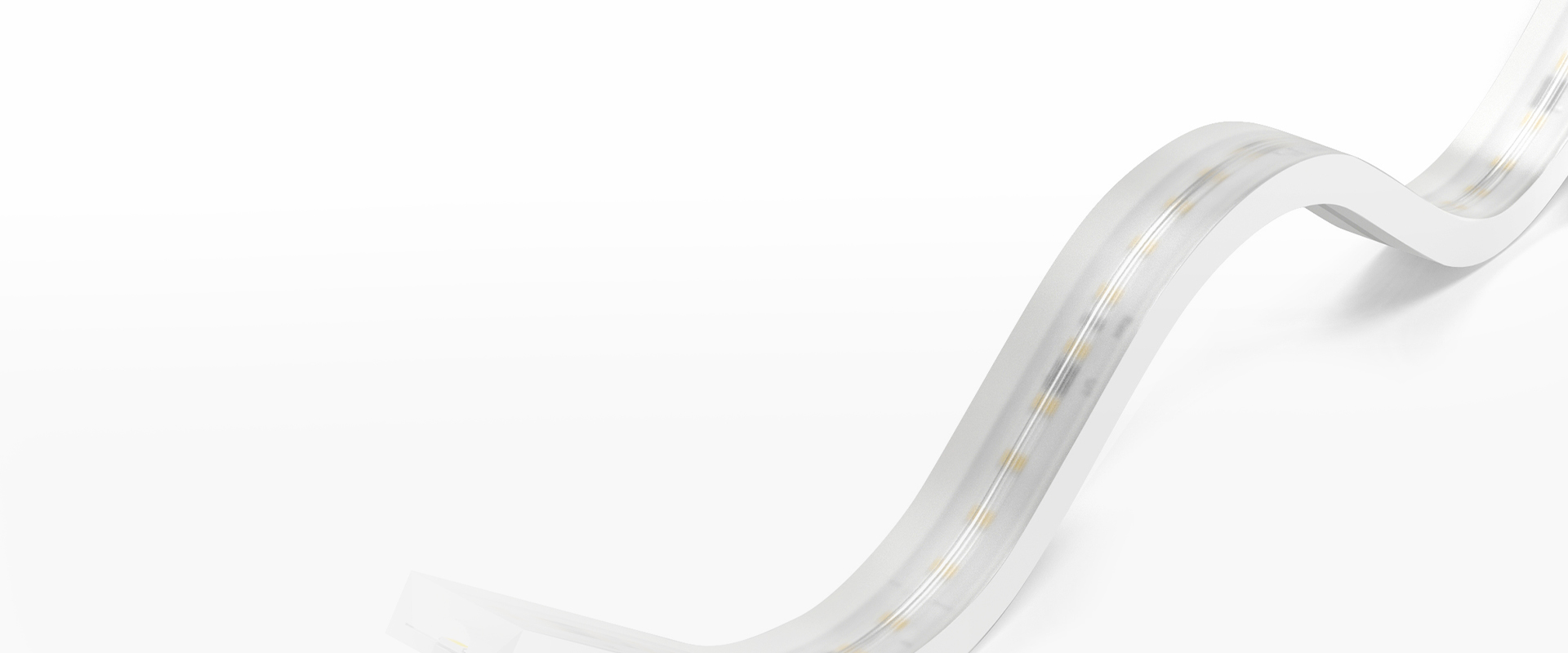

AC Neon IP67

Description

---

AC 12V/24V/230V input voltage LED neon, supports freely configurable in length by small cutting increments for precise field installation. Long Run Length >30m, Production Length is up to 30m. Dust-free matt finish is optional. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.

SILASTIC™Material

Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.

Safety Design

The fuse box on the cable to protect the LED neon. The fuse box will automatically disconnect from the LED neon when incorrect operations such as connecting the wrong voltage or short circuit during use.

Super Long Length

One side power to drive 30M length and the production length can be 30M per reel.

---

Different Models

Product Name

Dimension

Voltage

CCT

Power(W/M)

Efficacy@4000K

Min Cut Unit

IP Rating

Note the picture

---

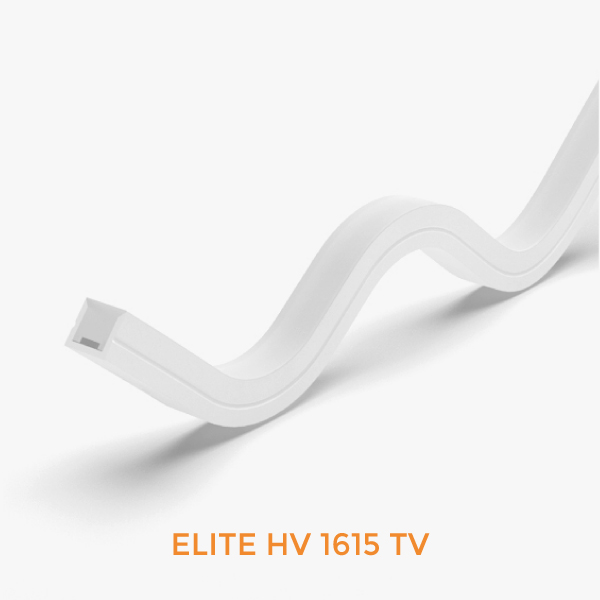

ELITE HV 1615 TV

16*15mm

AC220-240V

1800K-6500K

12W/M

57.0lm/w

100mm

IP67

---

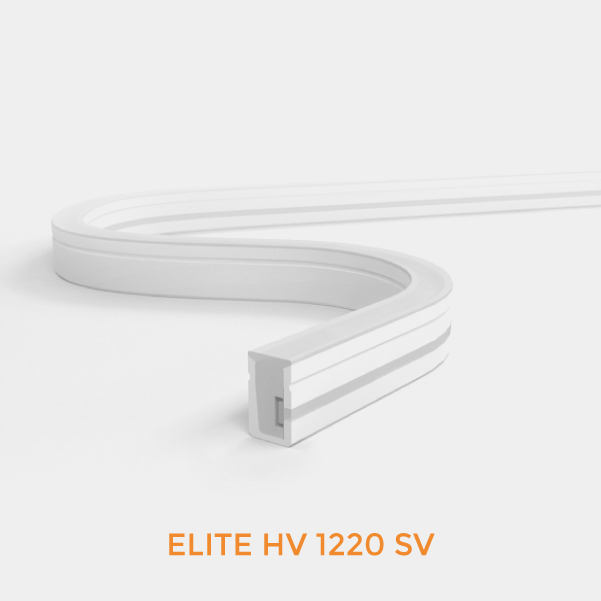

ELITE HV 1220 SV

12*20mm

AC220-240V

1800K-6500K

12W/M

43.2lm/w

100mm

IP67

---

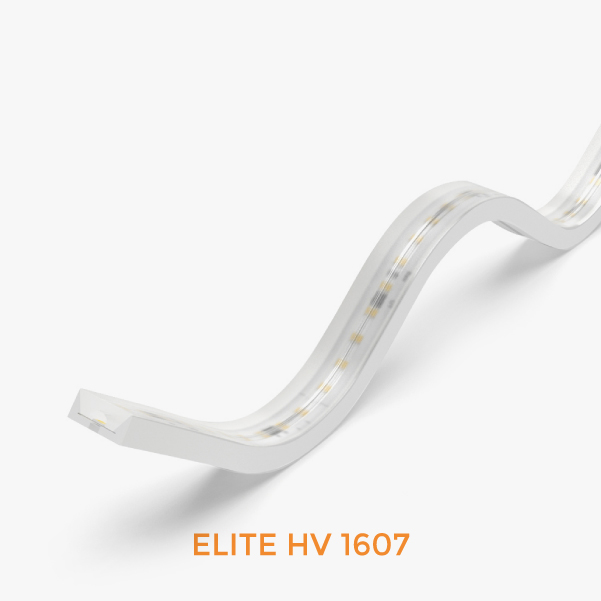

ELITE HV 1607

16*7mm

AC220-240V

1800K-6500K

12W/M

76.1lm/w

100mm

IP67

---

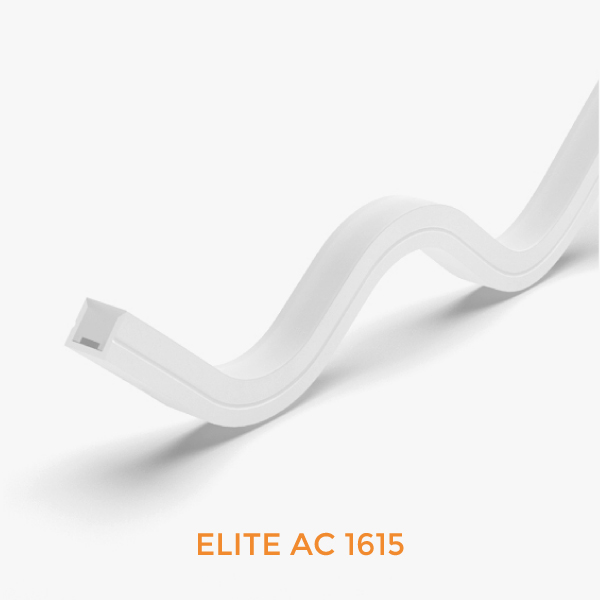

ELITE AC 1615

16*15mm

AC12V

2700K  3000K 4000K 5000K 6500K Single Color

10W/M

54.2lm/w

35.71mm

IP67
