Dome Neon IP67

Description

---

It is a wide beam angle >200° LED neon for indoor & outdoor use. Support freely configurable in length by small cutting increments for precise field installation. Flexible LED neon with uniform light and dimmable function. Dust-free matt finish is optional. Long-life LED > 50,000 hrs, SDCM3, 1 Bin.

SILASTIC™Material

Using Dow SILASTIC™ silicone and co-extrusion manufacturering offers premium UV resistance, chemical stability, and against abrasion.

LED SDCM3

Pure gold wire LED, long-life LED > 50,000 hrs, 1 Bin, CRI>90.

DIY Connector

Make the customized lengths by yourselves in minutes! Soldering free DIY connector designed for user which can support you cut our ELITE Neon and easily re-connect lead cable on site.

---

Different Models

Product Name

Dimension

Voltage

CCT

Power(W/M)

Efficacy@4000K

Min Cut Unit

IP Rating

Note the picture

---

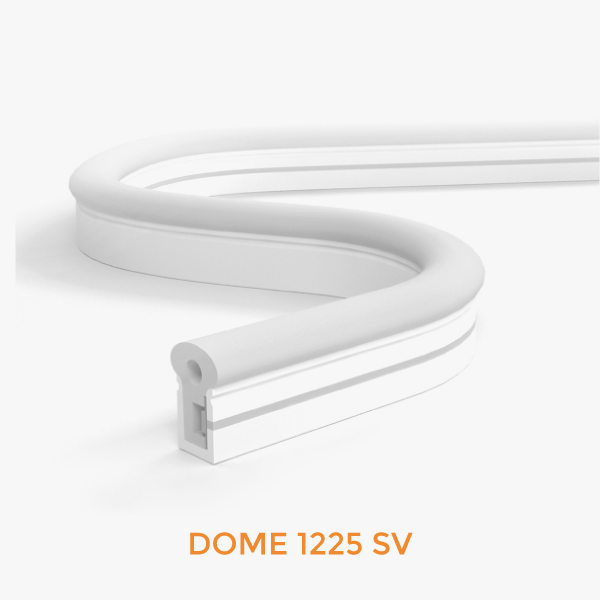

DOME 1225 SV

12*25mm

DC24V

2100K-6000K  R  B  G  RGB  RGBW  CCT  DIGITAL

5W/10W/15W/M

31.8lm/w

50/62.5mm

IP67

---

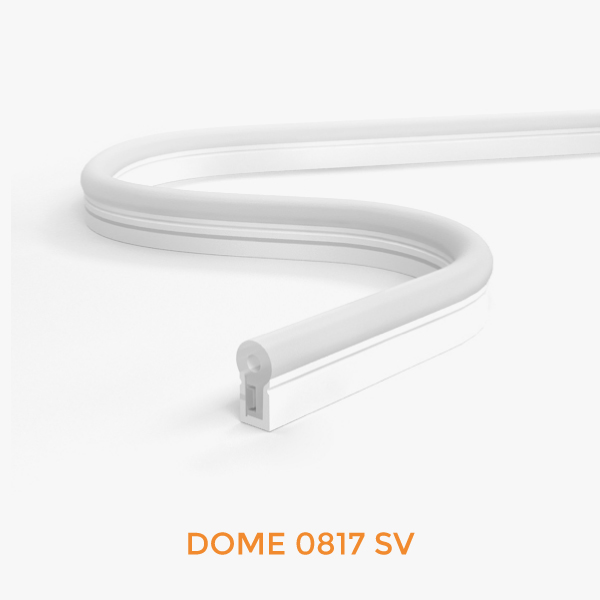

DOME 0817 SV

8*17mm

DC24V

2100K-6000K  R  B  G  RGB  CCT  DIGITAL

5W/10W/M

34lm/w

50/62.5mm

IP67

---

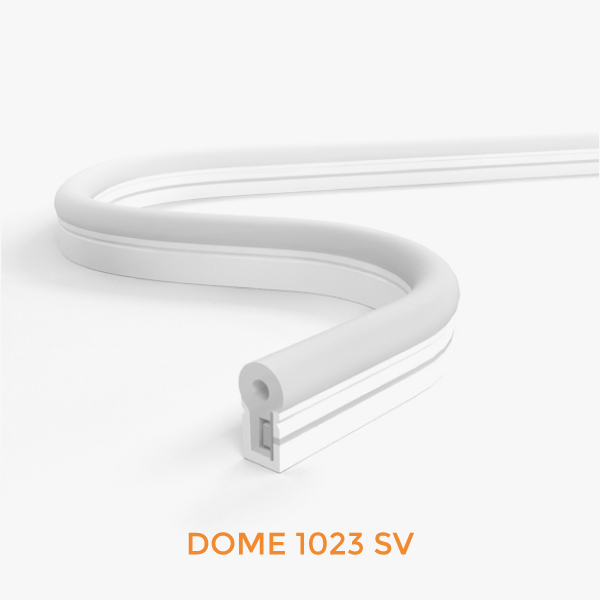

DOME 1023 SV

10*23mm

DC24V

2100K-6000K  R  B  G  RGB  RGBW  CCT

5W/10W/15W/M

38.7lm/w

50/62.5mm

IP67

---

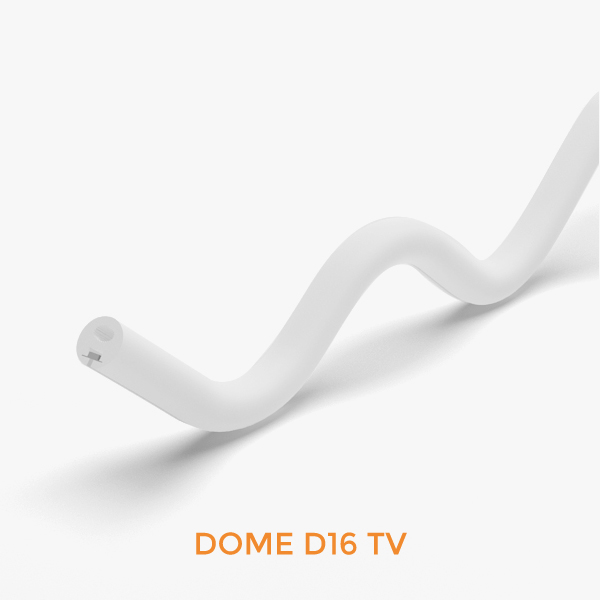

DOME D16 TV

16*15.5mm

DC24V

2100K-6000K  R  B  G  RGB  CCT  DIGITAL

5W/10W/M

70.7lm/w

50/62.5mm

IP67
