LED Driver-XLG-240

Description

Features

Wide input range 100~305V AC( Class I)
Full power output at 70~100% Constant power mode operation

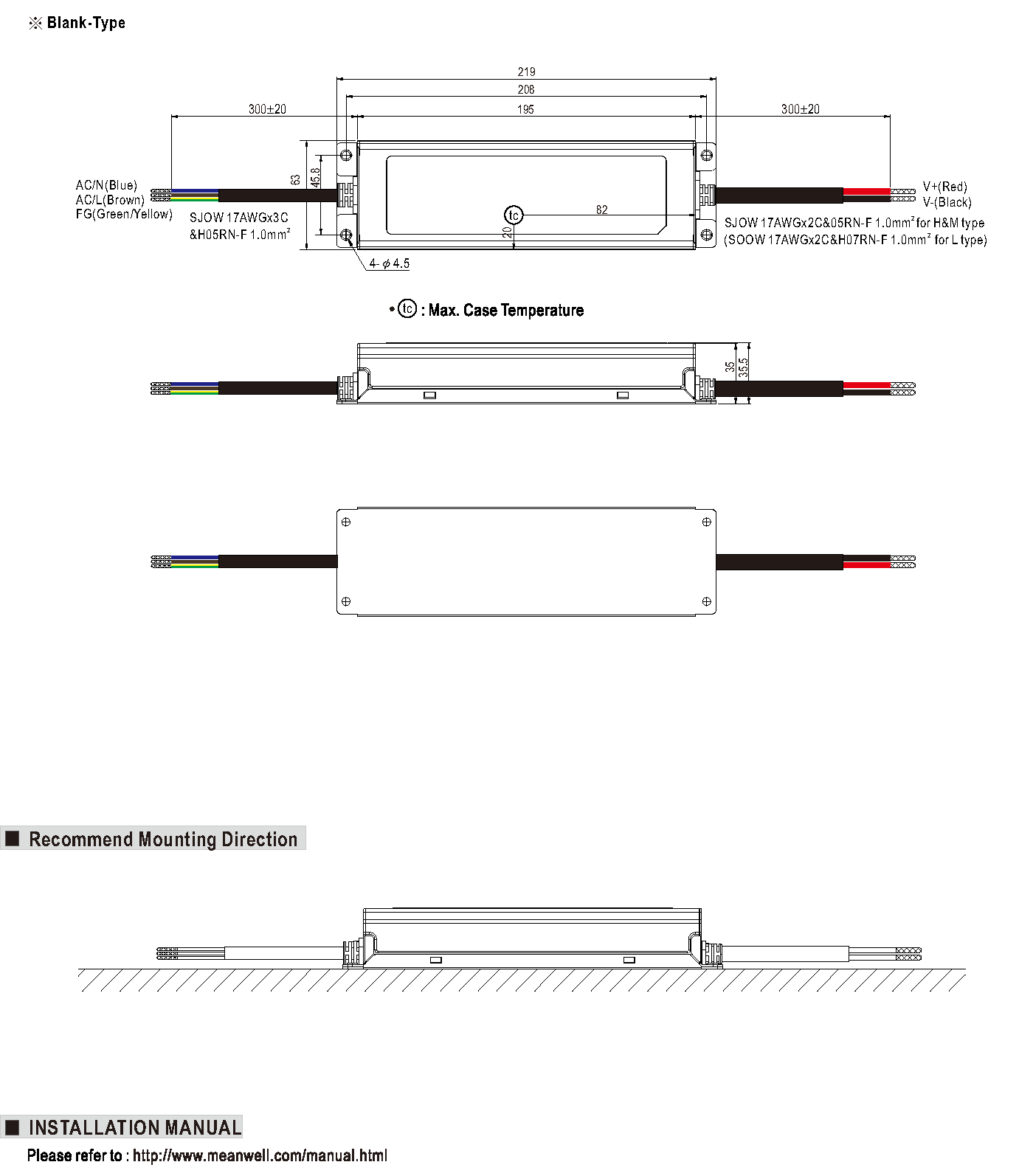

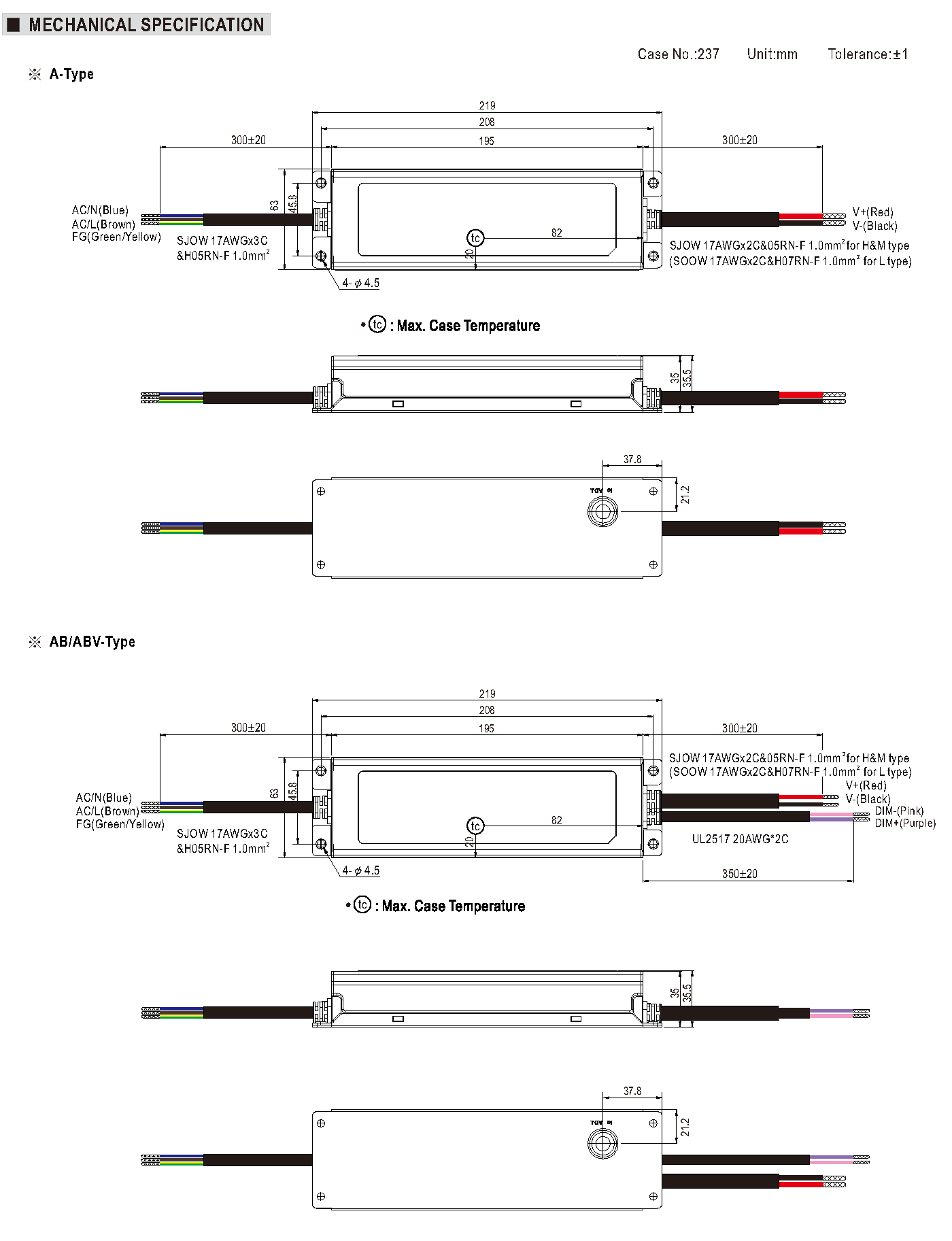

Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)

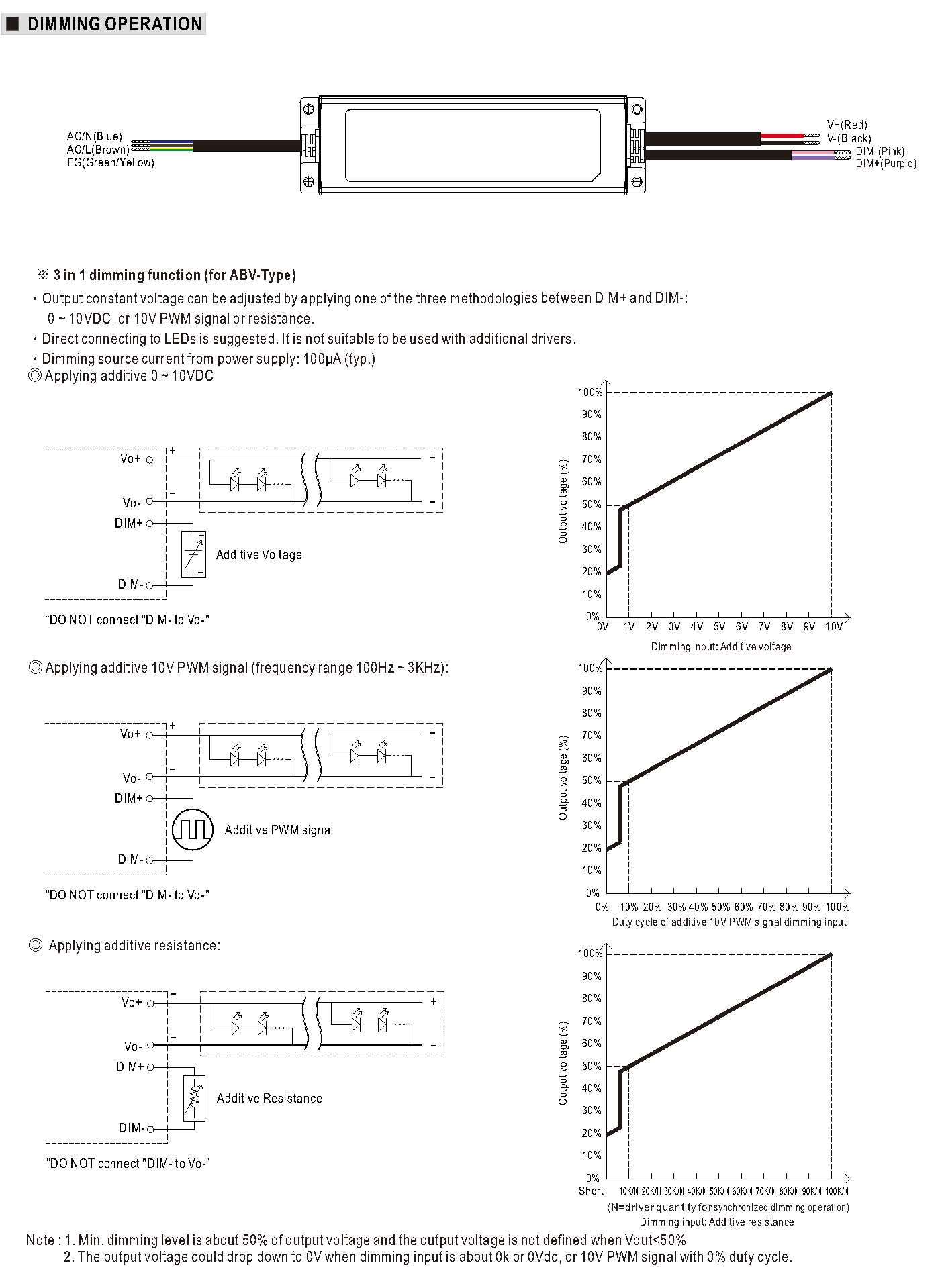

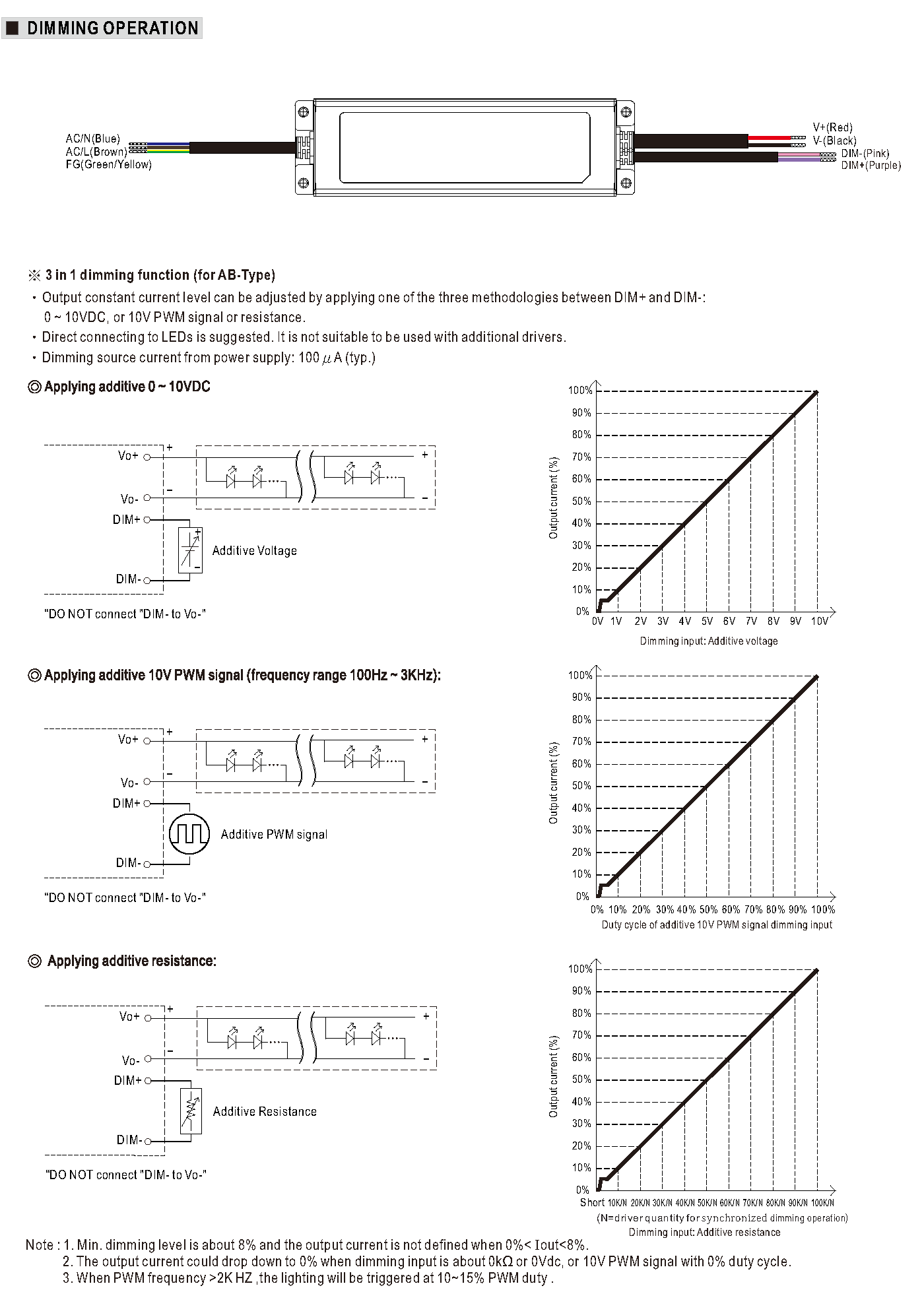

3 in 1 dimming function (Dim to off and Isolation design)
India (EESL) version, can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP

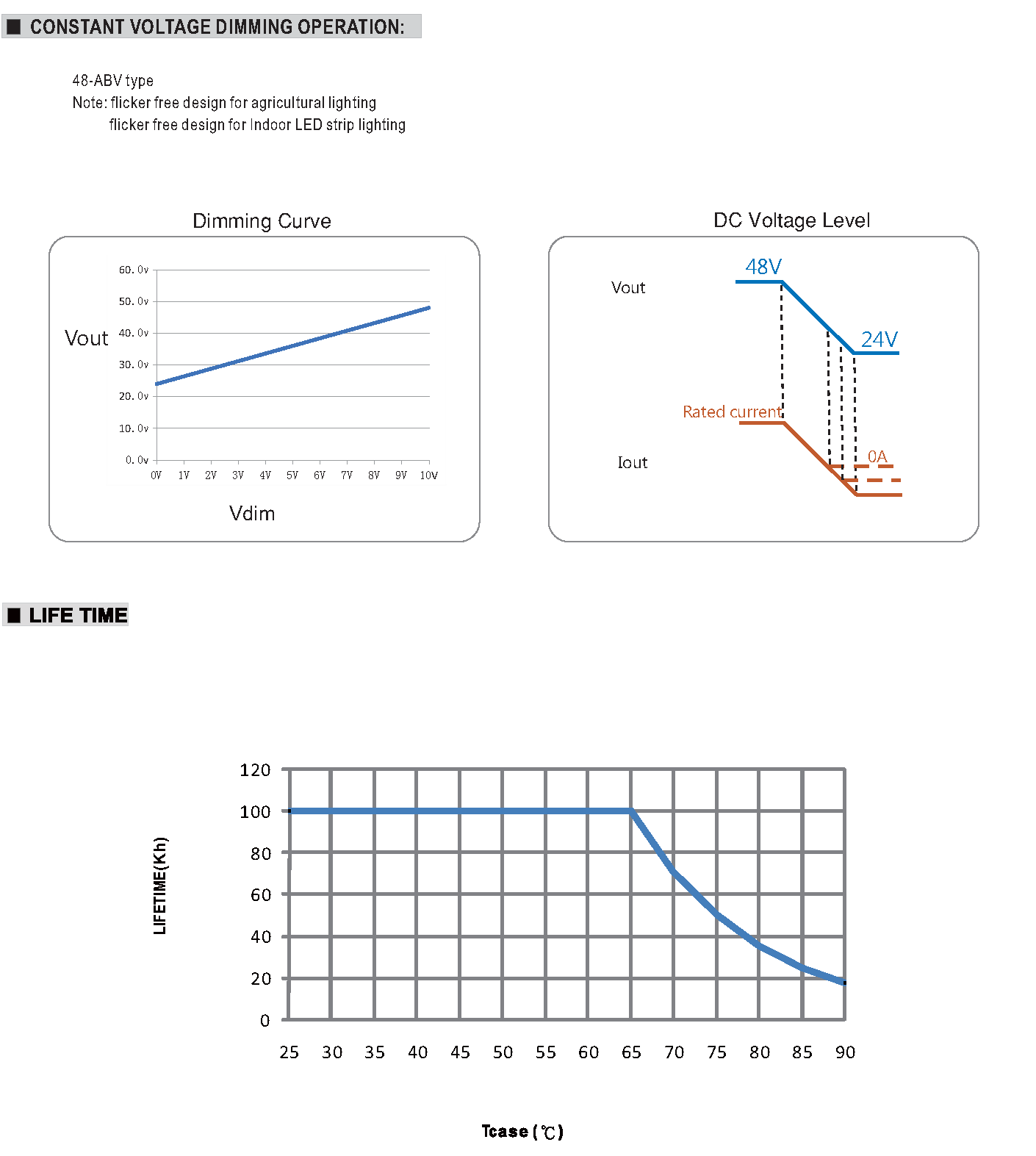

Life time >50,000 hrs. and 5 years warranty

Applications

Skyscraper lighting
Street lighting
Floodlight Lighting
Stage lighting
Fishing lighting
Horticulture lighting
Bay lighting
LED strip lighting (ABV type)
Agricultural lighting (ABV type)
Type HL for use in class I, Division 2

Description

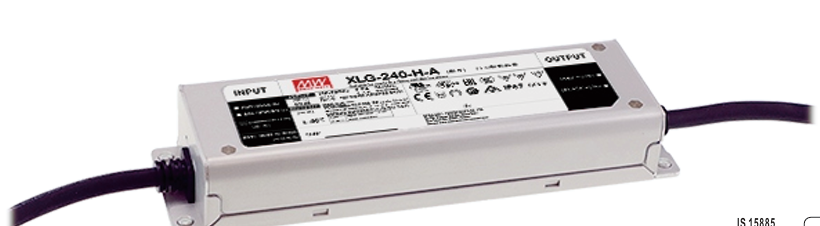

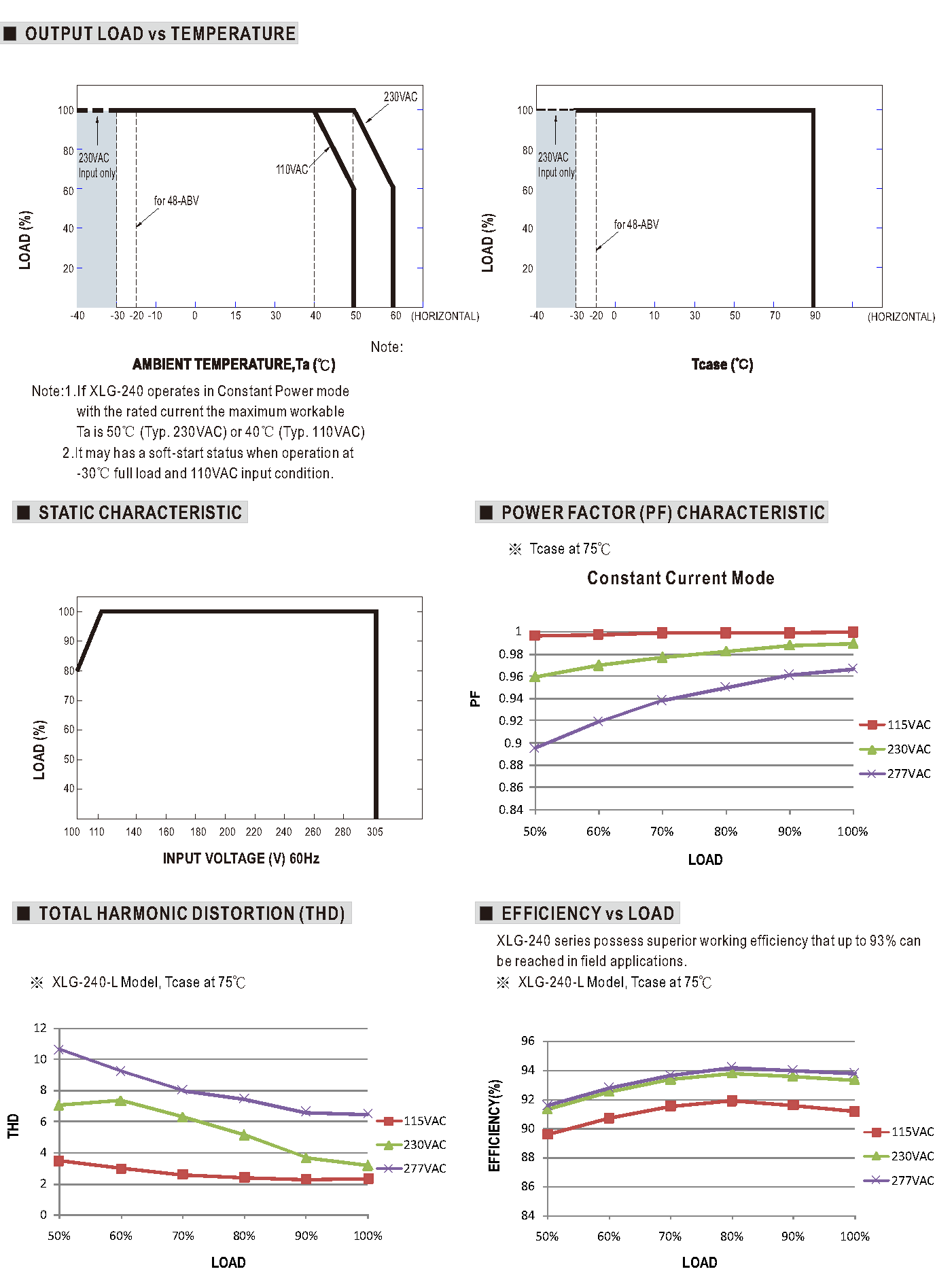

XLG-240 series is a 240W LED AC/DC driver featuring the constant power mode. XLG-240 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 6.66A. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-240 is designed with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the user and luminaire system safety during installation.
