LED Driver-XLG-150

Description

Features

Wide input range 100~305VAC( Class I )
Full power output at 70~100%
Constant power mode operation

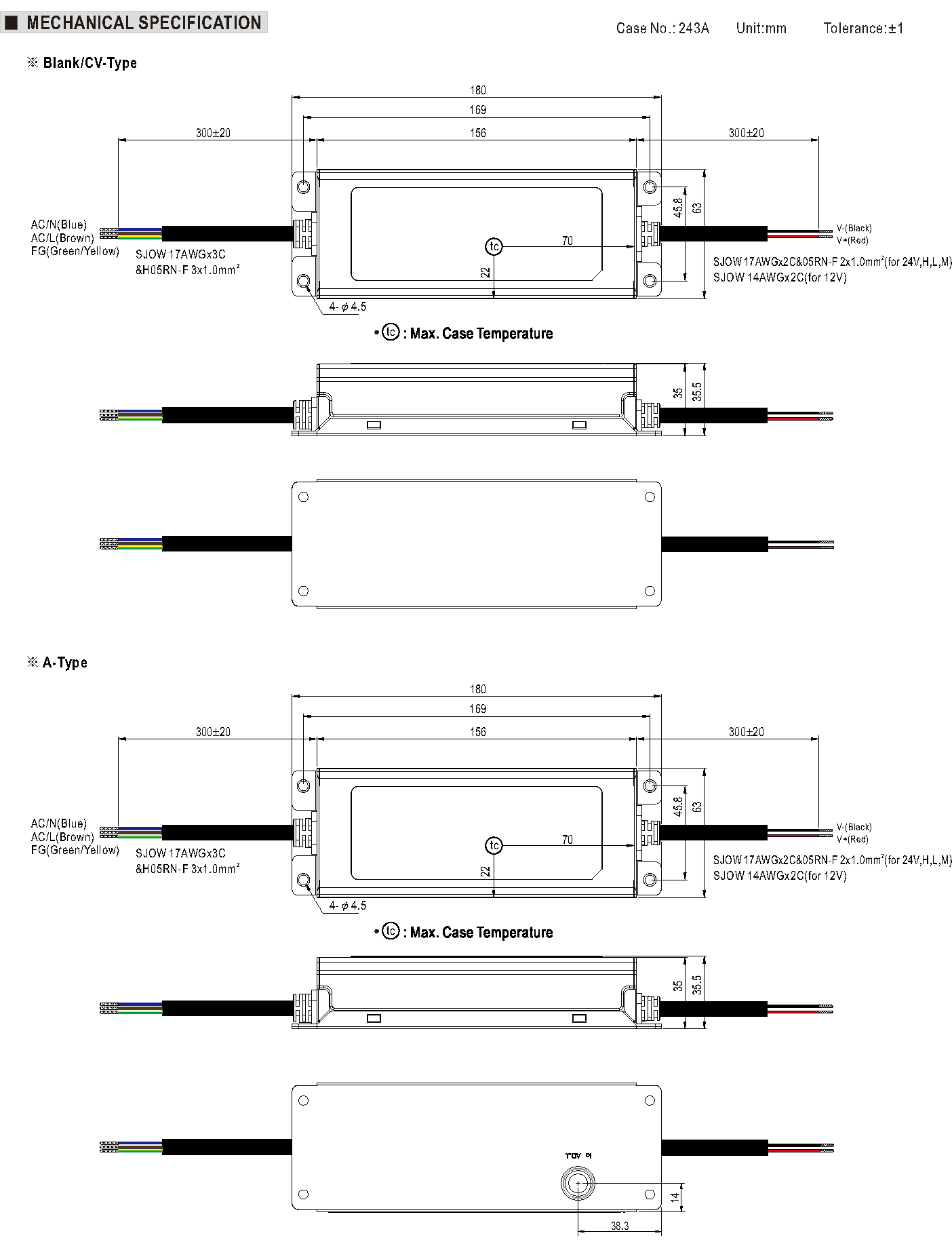

Metal case with IP67, suitable for outdoor application
Surge protection with 6KV/4KV (10KV/6KV optional)

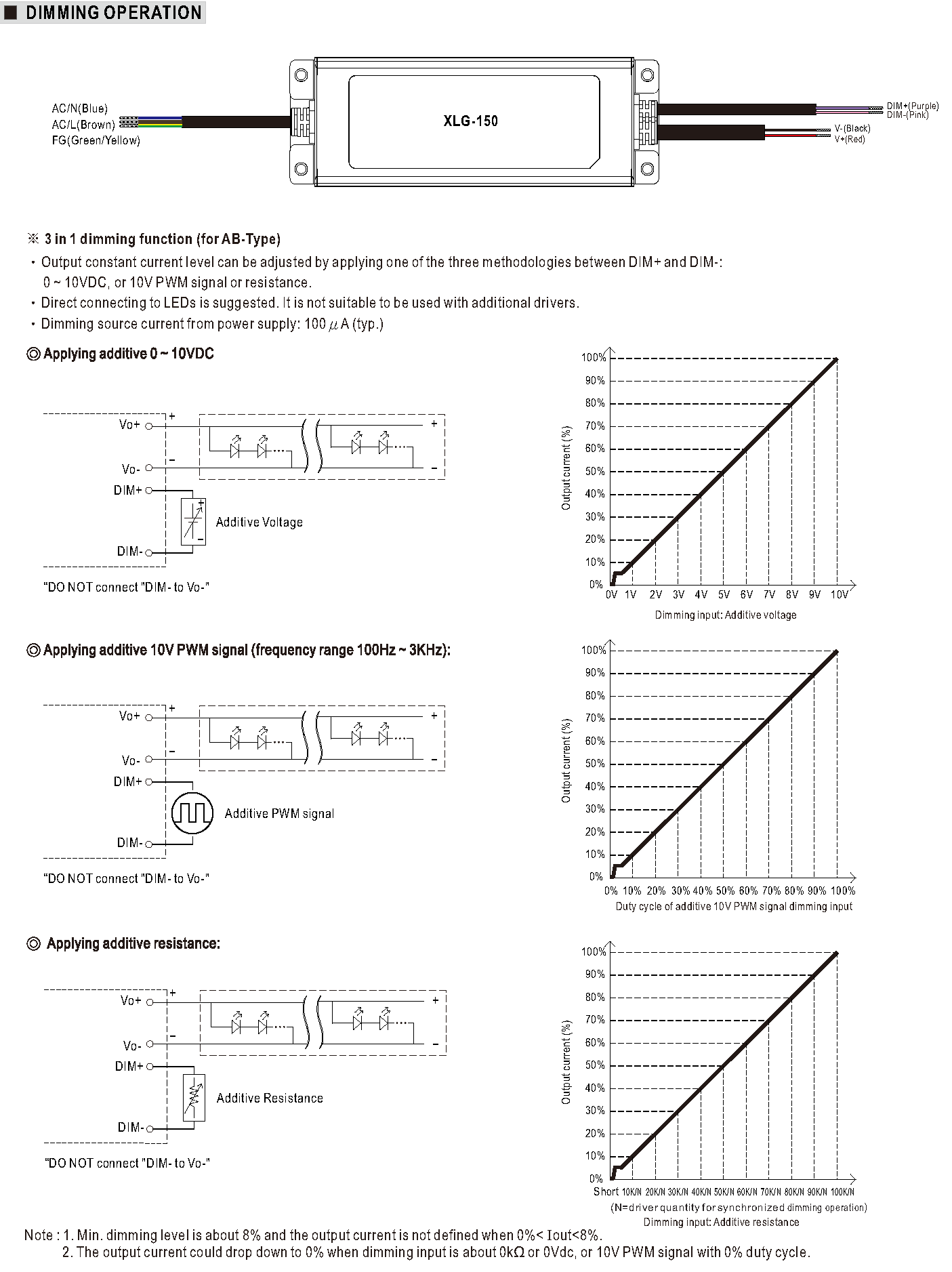

3 in 1 dimming function (Dim to off and Isolation design)

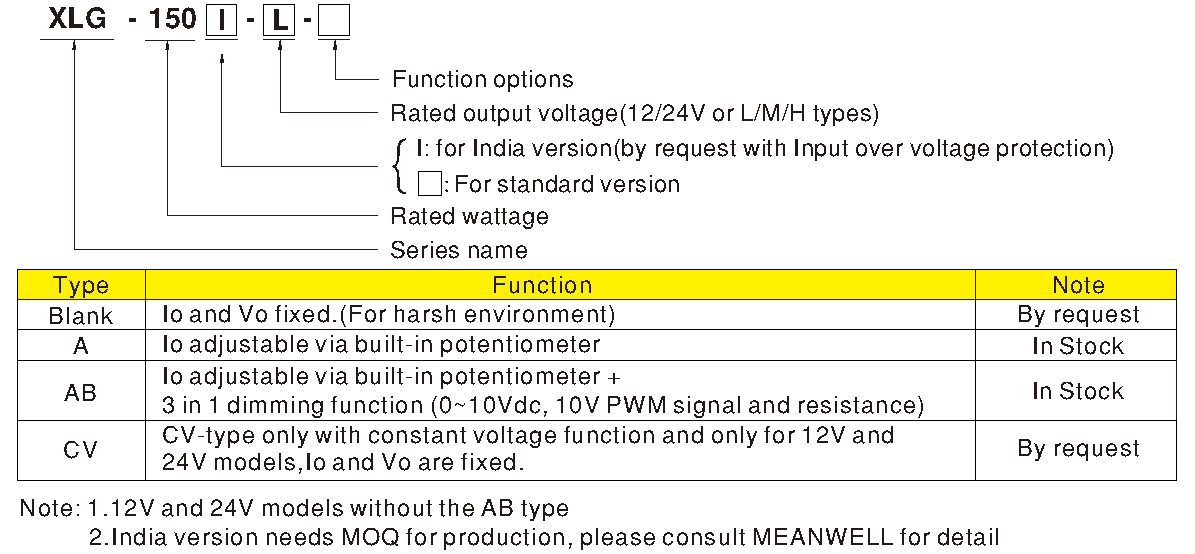

India (EESL) version with Input Over Voltage Protection can survive input voltage stress of 440Vac for 48 hours
Protection functions: OVP/SCP/OCP/OTP
Compliance to EN60335-1 household application

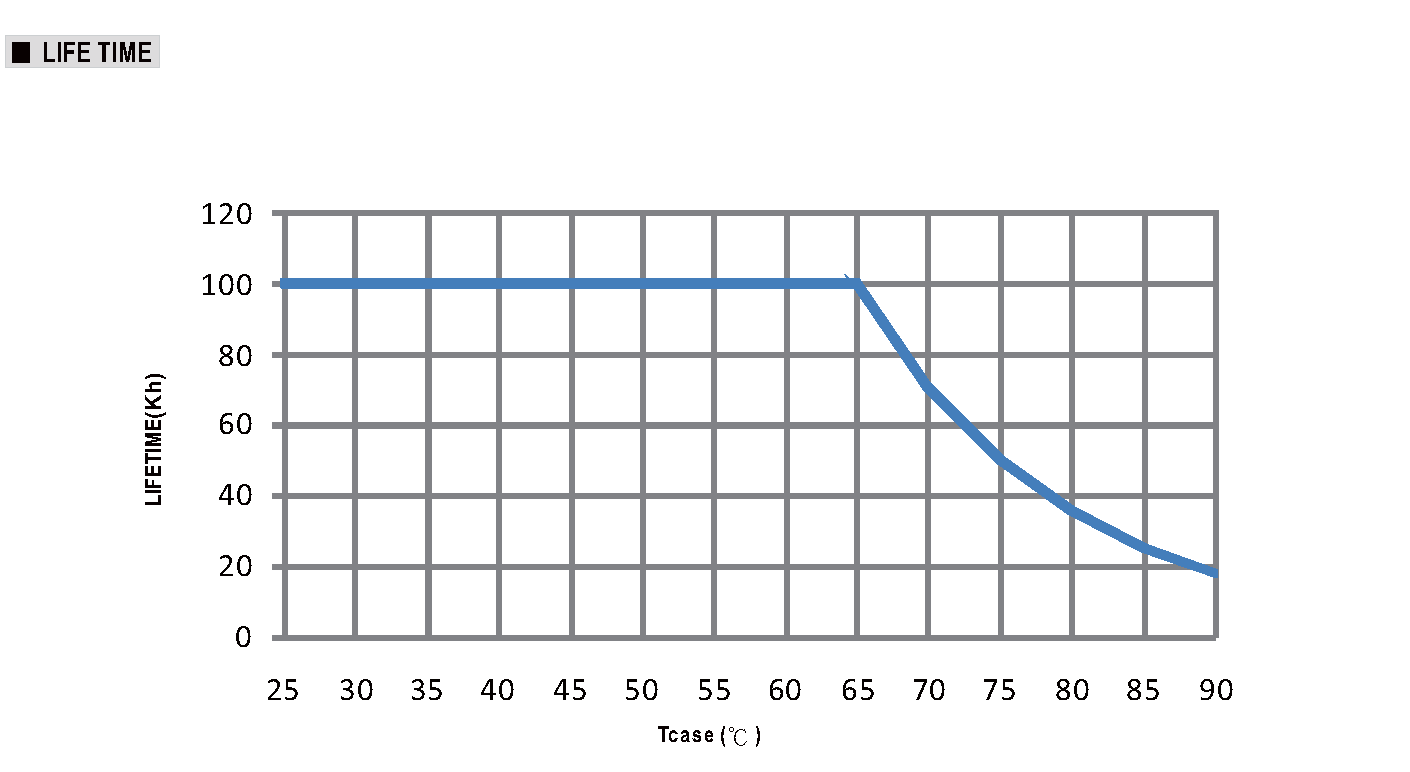

Life time >50,000 hrs. and 5 years warranty

Applications

Skyscraper lighting
Street lighting
Floodlight Lightin
Stage lighting
Horticulture lighting
Bay lighting
DMX power supply
Type HL for use in class I, Division 2
Household devices

Description

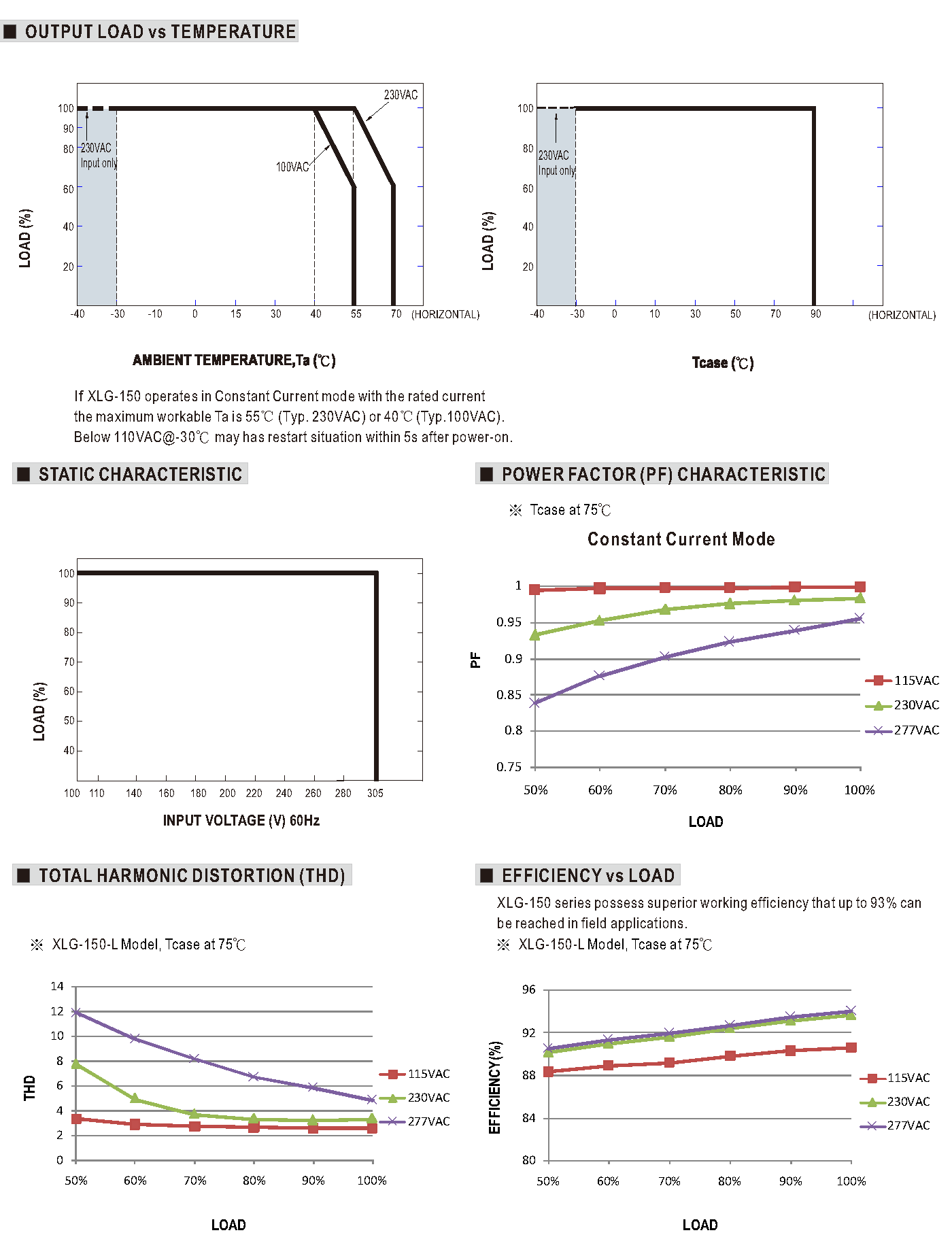

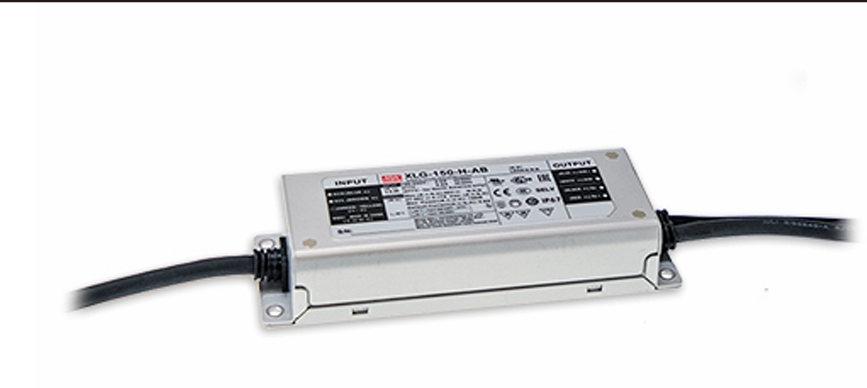

XLG-150 series is a 150W LED AC/DC driver featuring the constant power mode. XLG-150 operates from 100~305VAC and offers models with different rated current ranging between 700mA and 12500mA. Thanks to the high efficiency up to 93%, with the fanless design, the entire series is able to operate for -40℃~+90℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaires in the world. XLG-150 series comply with the latest version of IEC61347/GB19510.1 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
