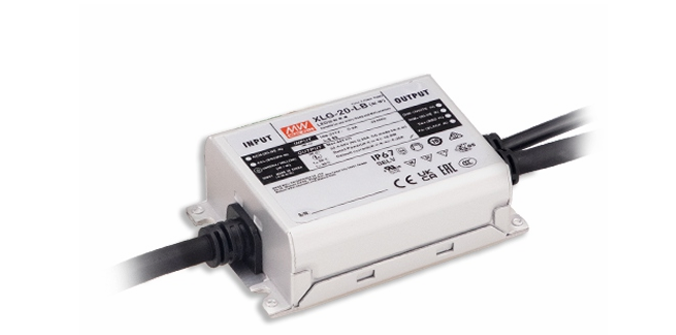

LED Driver-XLG-20

Description

Features

Constant current mode output
Wide input range 90~305VAC (Class Ⅰ)
Built-in active PFC function
Class 2 power unit
No load power consumption <0.5W
IP67 rating for indoor or outdoor installations

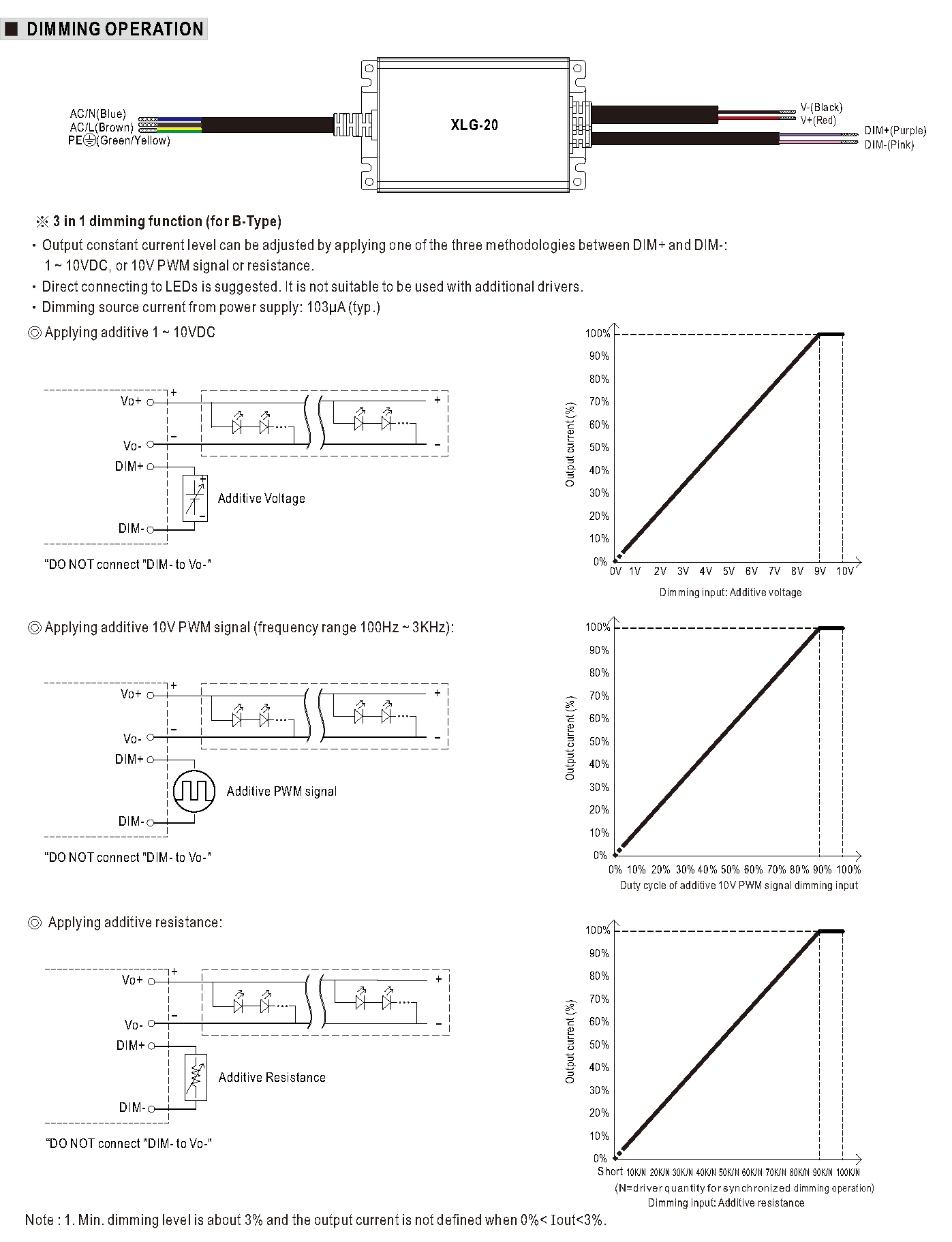

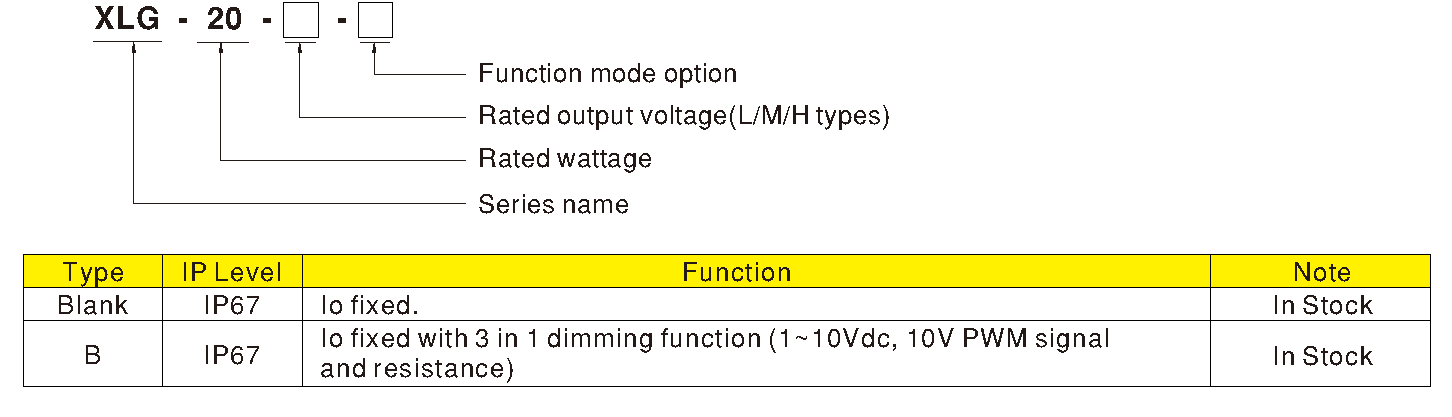

Function options: output adjustable via potentiometer; 3 in 1 dimming (isolated design)
Typical lifetime>50000 hours
5 years warranty

Applications

Street lighting
Architectural lighting
Low bay lighting
Floodlight lighting
Industrial Lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Description

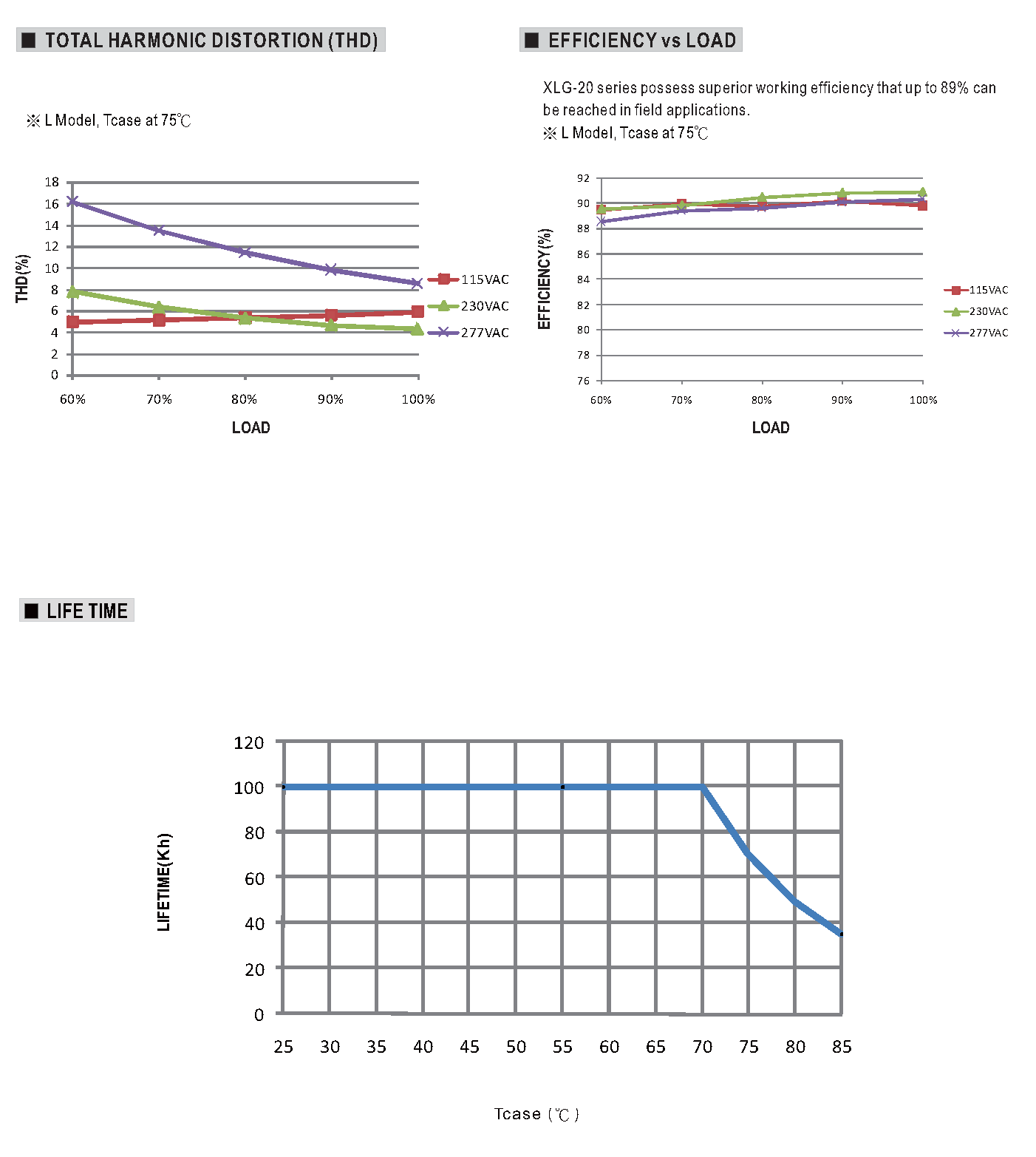

XLG-20 series is a AC/DC LED driver featuring the constant current mode output. XLG-20 operates from 90~305VAC. Thanks to the high efficiency up to 89%, The entire series is able to operate between-40℃~+80℃ wide case temperature range with air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.XLG-20 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.XLG-20 series comply with the latest version of IEC61347/GB7000.1-2015 and UL8750 international safety regulations. The output and dimming circuit are also completely in accordance with the new regulations with isolation to ensure the safety of both user and luminaire system during installation.
