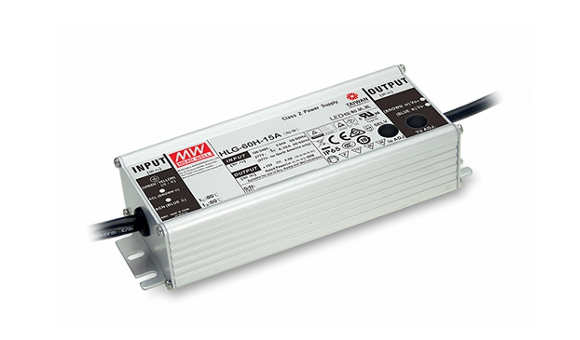

LED Driver-HLG-60H

Description

Features

Constant Voltage + Constant Current mode output

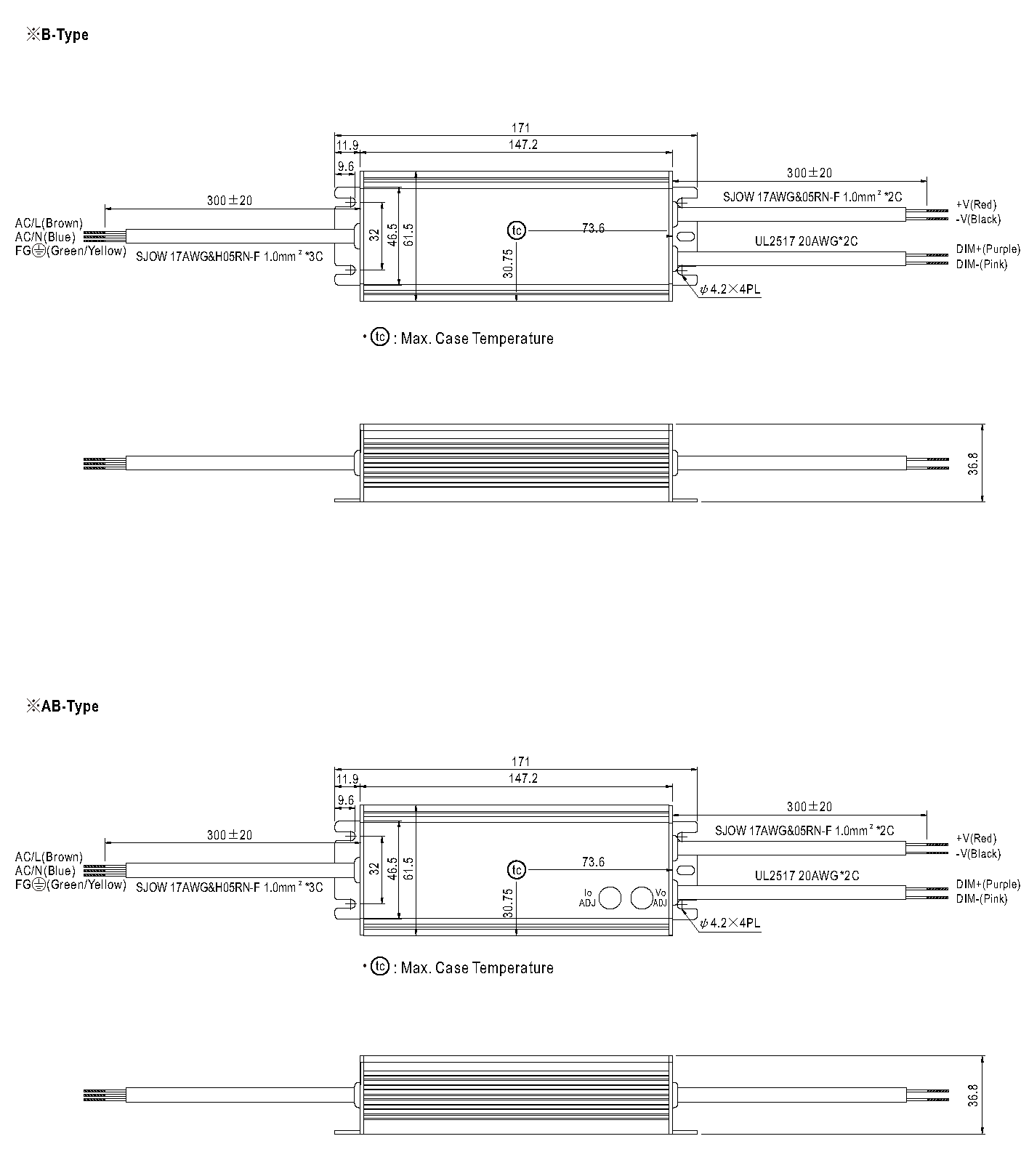

Metal housing with class I design
Built-in active PFC function
Class 2 power unit
IP67 / IP65 rating for indoor or outdoor installations

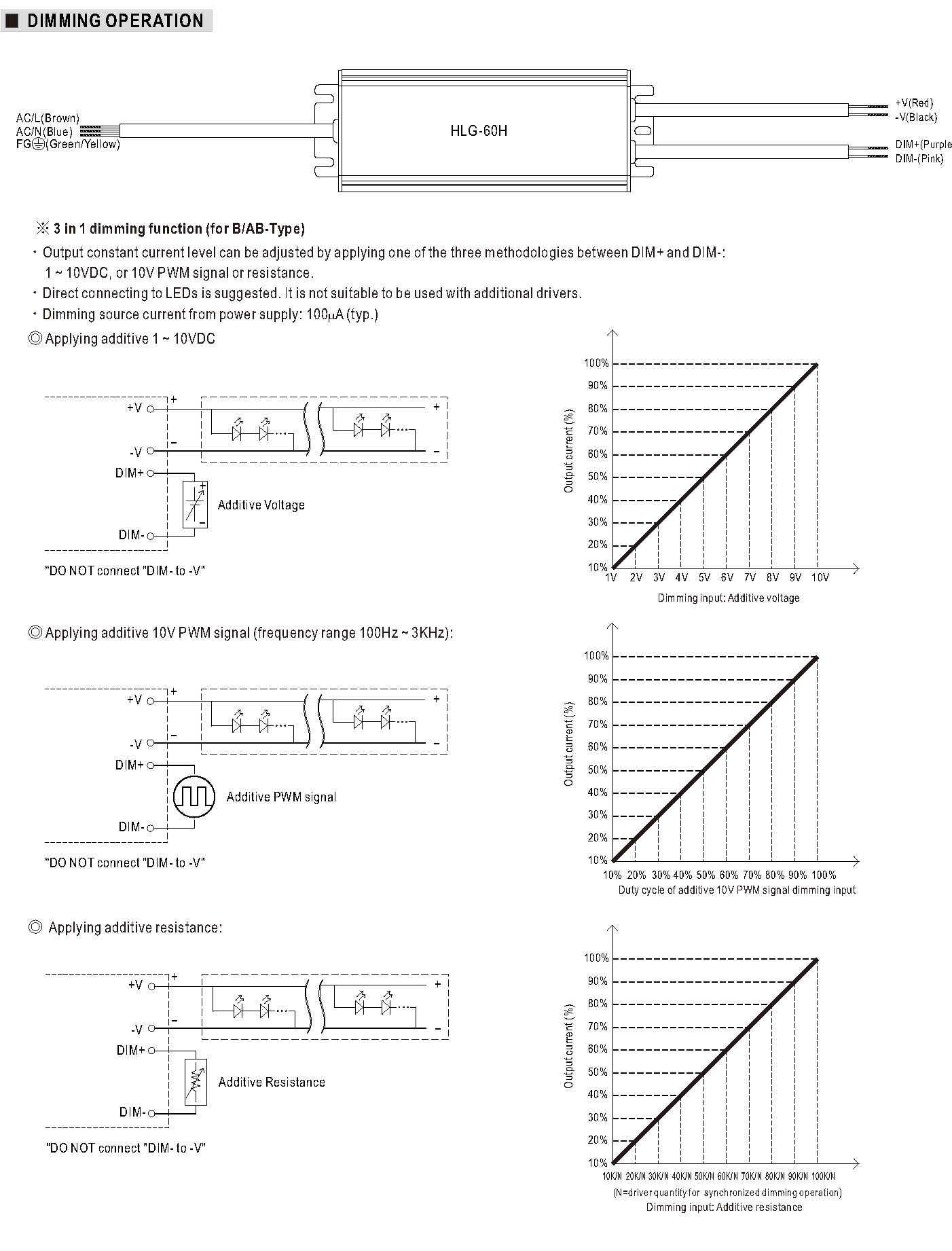

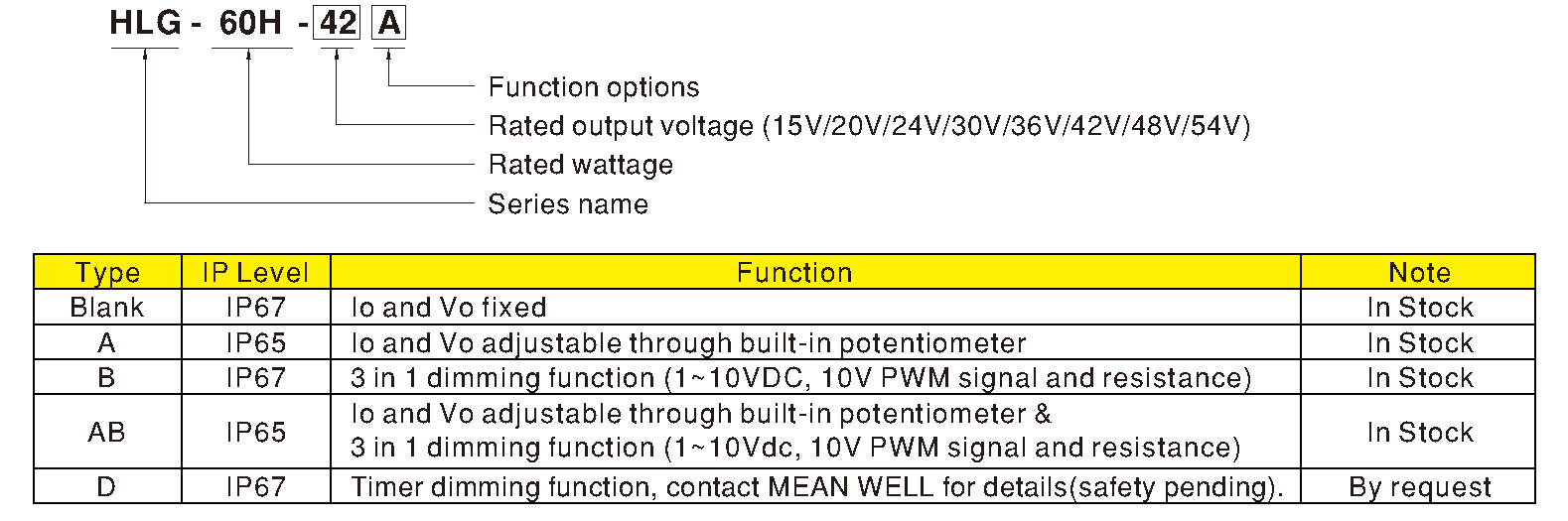

Function options: output adjustable via potentiometer; 3 in 1 dimming; Timer dimming

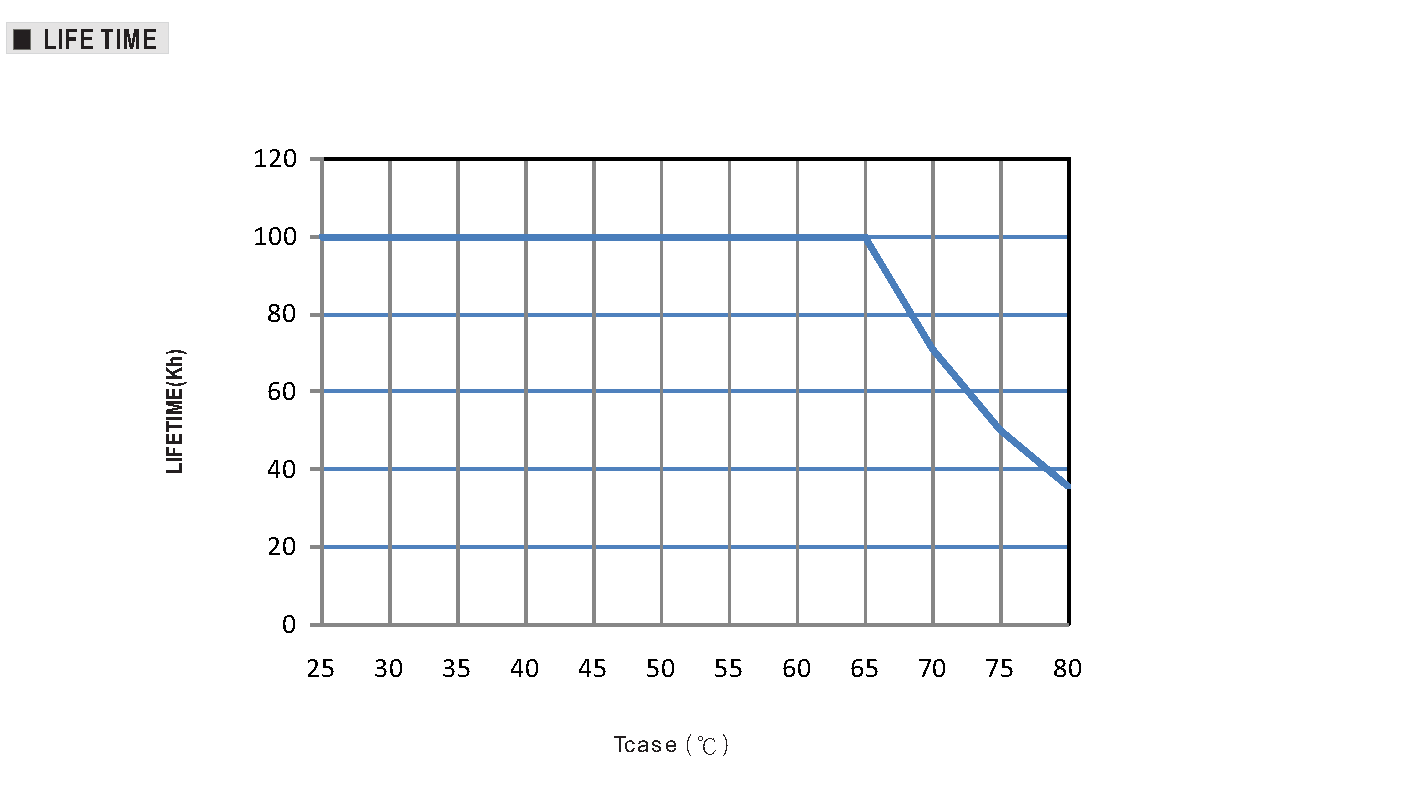

Typical lifetime > 62000 hours
7 years warranty

Applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Description

HLG-60H series is a 60W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-60H operates from 90 ~ 305VAC and offers models with different rated voltage ranging between 15V and 54V. Thanks to the high efficiency up to 90.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-60H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
