Description
Features
- Constant Voltage + Constant Current mode output
- Metal housing with class I design
- IP67 / IP65 rating for indoor or outdoor installations

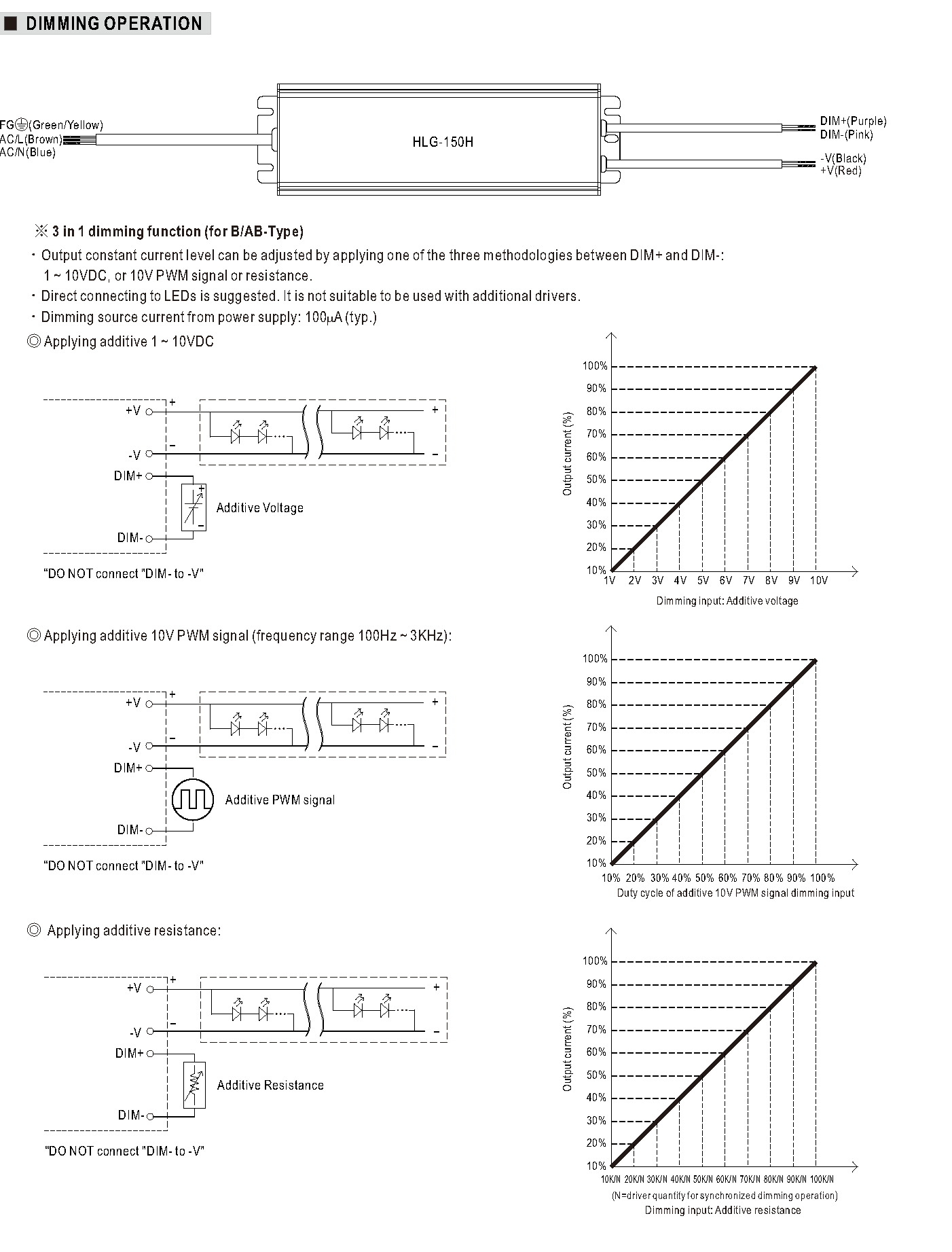

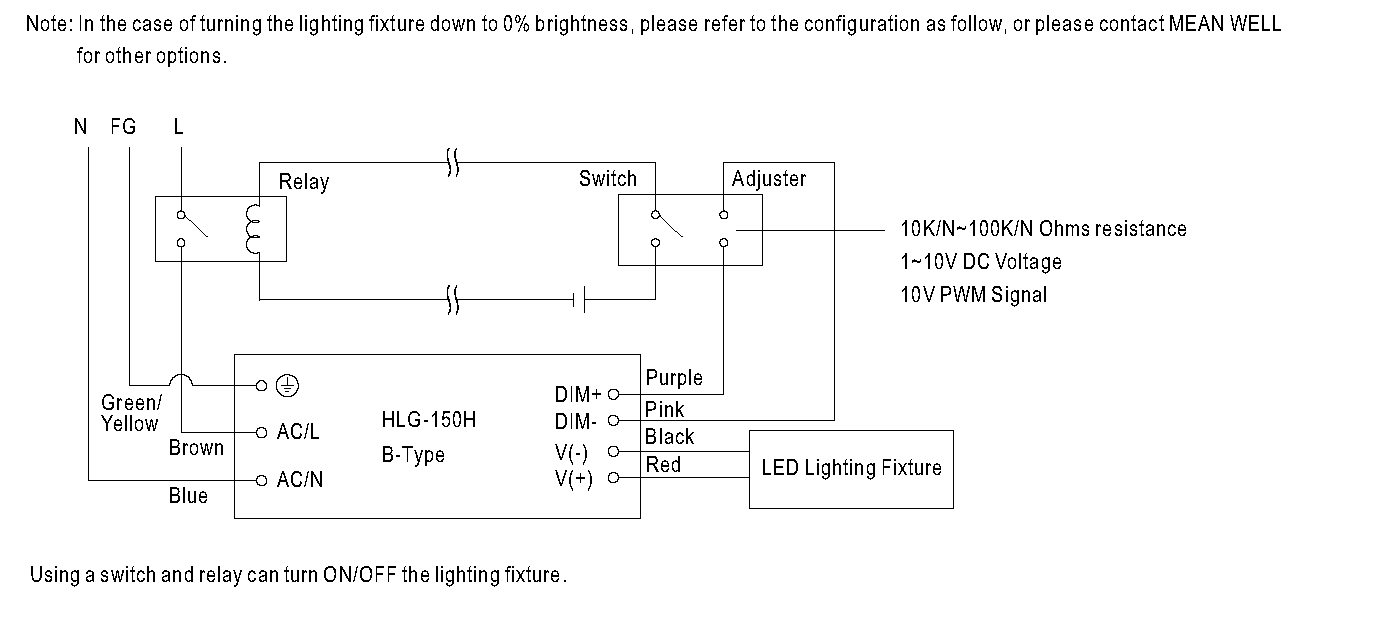

- Function options: output adjustable via potentiometer; 3 in 1 dimming
- Typical lifetime > 62000 hours
- 7 years warranty
Applications
- LED street lighting
- LED high-bay lighting
- Parking space lighting
- LED fishing lamp
- LED greenhouse lighting
- Type “HL” for use in Class I, Division 2 hazardous (Classified) location.
Description

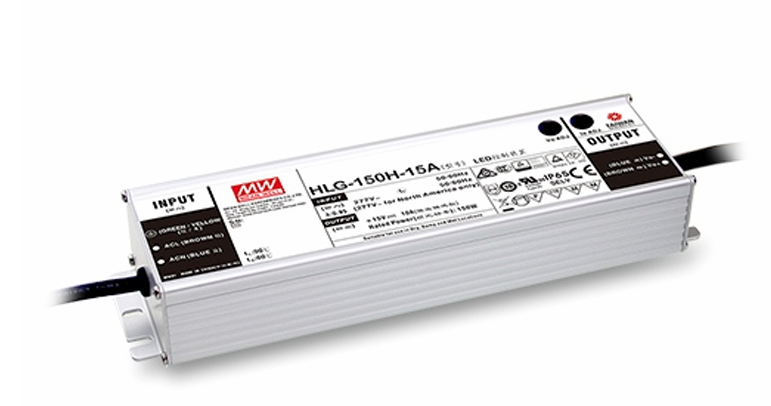

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90 ~ 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

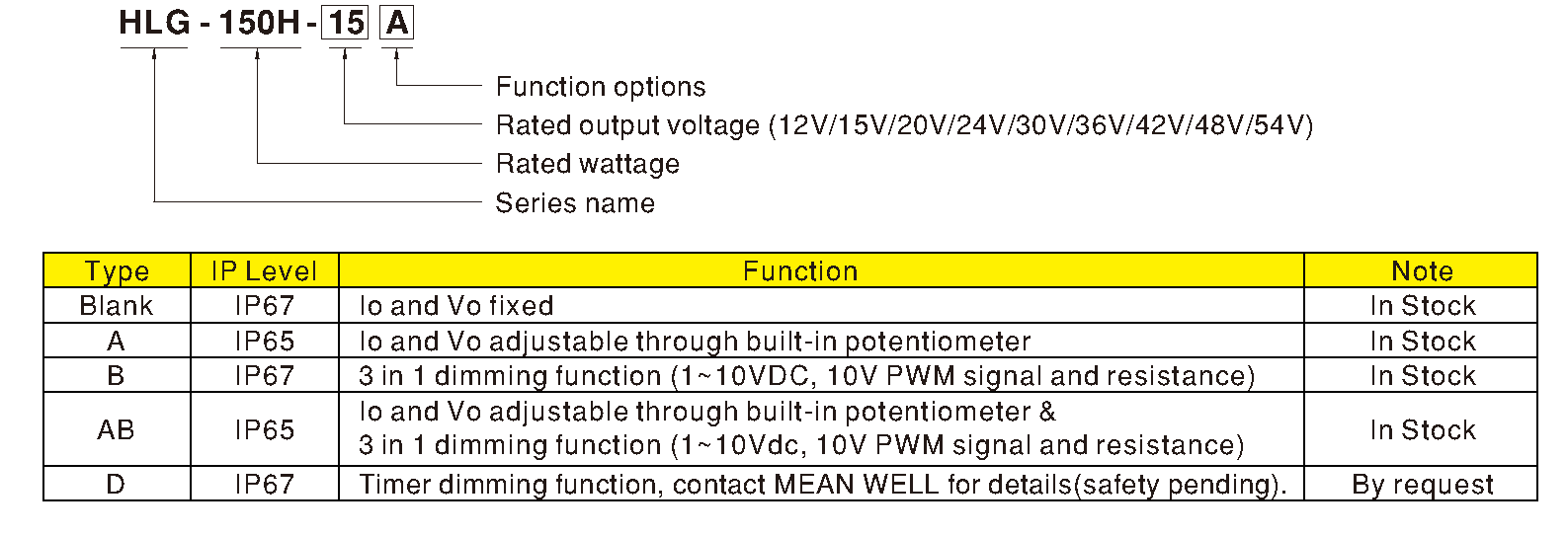

Model Encoding

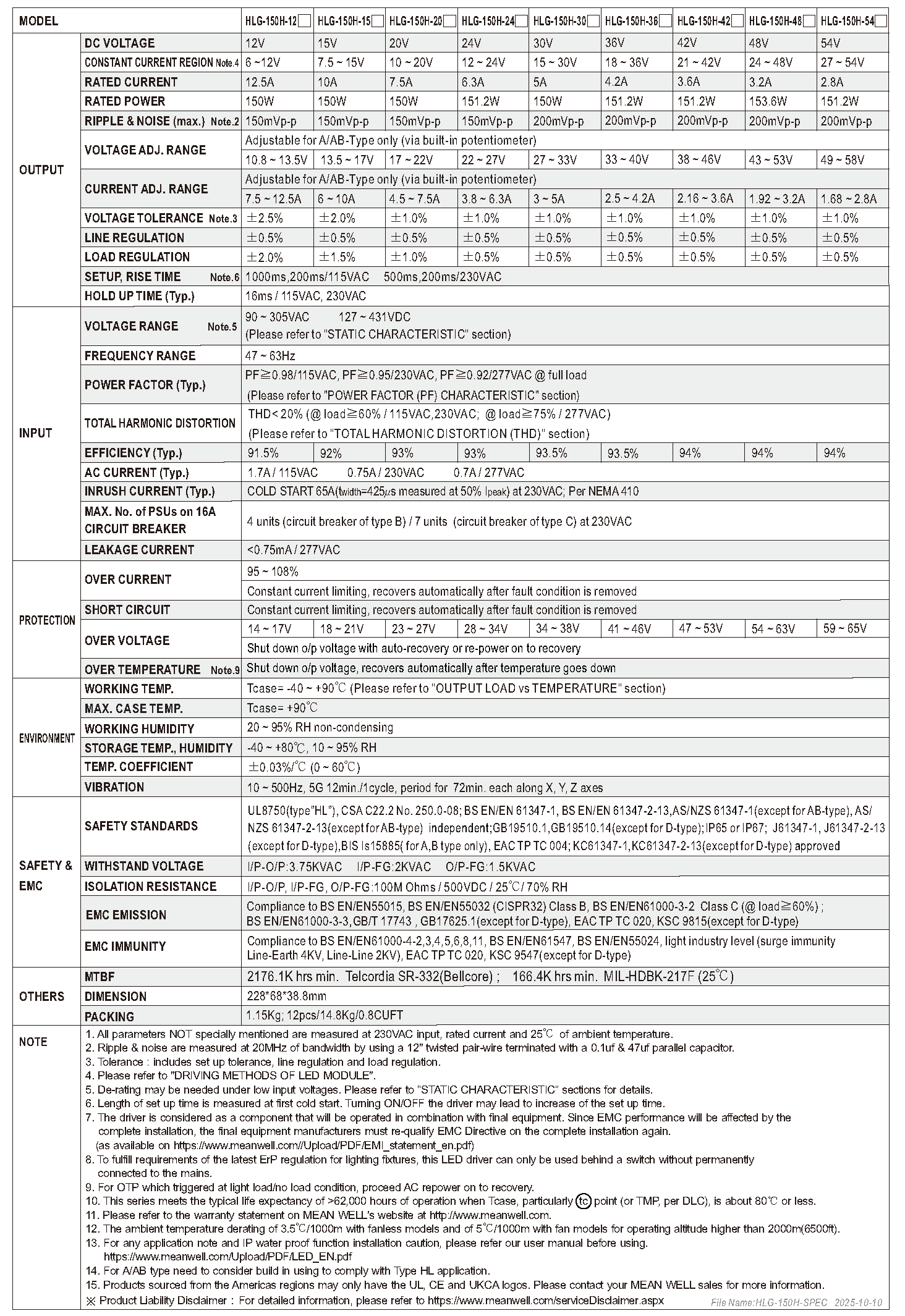

SPECIFICATION
Voltage Report
| Test Report | HLG-150H-12 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtMTItUlBULlBERg==&a=2 |
| HLG-150H-15 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtMTUtUlBULlBERg==&a=2 |
| HLG-150H-20 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtMjAtUlBULlBERg==&a=2 |
| HLG-150H-24 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtMjQtUlBULlBERg==&a=2 |
| HLG-150H-30 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtMzAtUlBULlBERg==&a=2 |
| HLG-150H-36 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtMzYtUlBULlBERg==&a=2 |
| HLG-150H-42 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtNDItUlBULlBERg==&a=2 |
| HLG-150H-48 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtNDgtUlBULlBERg==&a=2 |
| HLG-150H-54 | https://www.meanwell.com/webapp/product/search.aspx?prod=HLG-150H&pdf=SExHLTE1MEgtNTQtUlBULlBERg==&a=2 |
