Enclosed Type-LRS-450

Description

Features

MEANWELL Patent Number :ZL202220241473.0
AC input range selectable by switch
Withstand 300VAC surge input for 5 second
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling
Built-in cooling Fan ON-OFF control
1U low profile
Withstand 5G vibration test
High operating temperature up to 70℃
Operating altitude up to 5000 meters (Note.10)
3 years warranty
MTBF>1KK hrs

Applications

Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus

Description

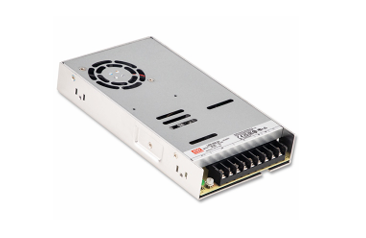

LRS-450 series is a 450W single-output enclosed type power supply with 35mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 92%, with the built-in long life fan LRS-450 can work under -20~+70℃ with full load. LRS-450 has the complete protection functions and 5G anti-vibration capability; It is complied with complete international safety regulations. LRS-450 series serves as a high price-to-performance power supply solution for various industrial applications.
