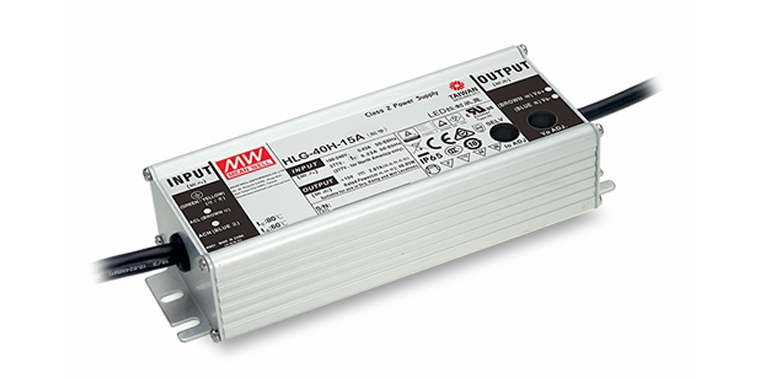

LED Driver-HLG-40H

Features

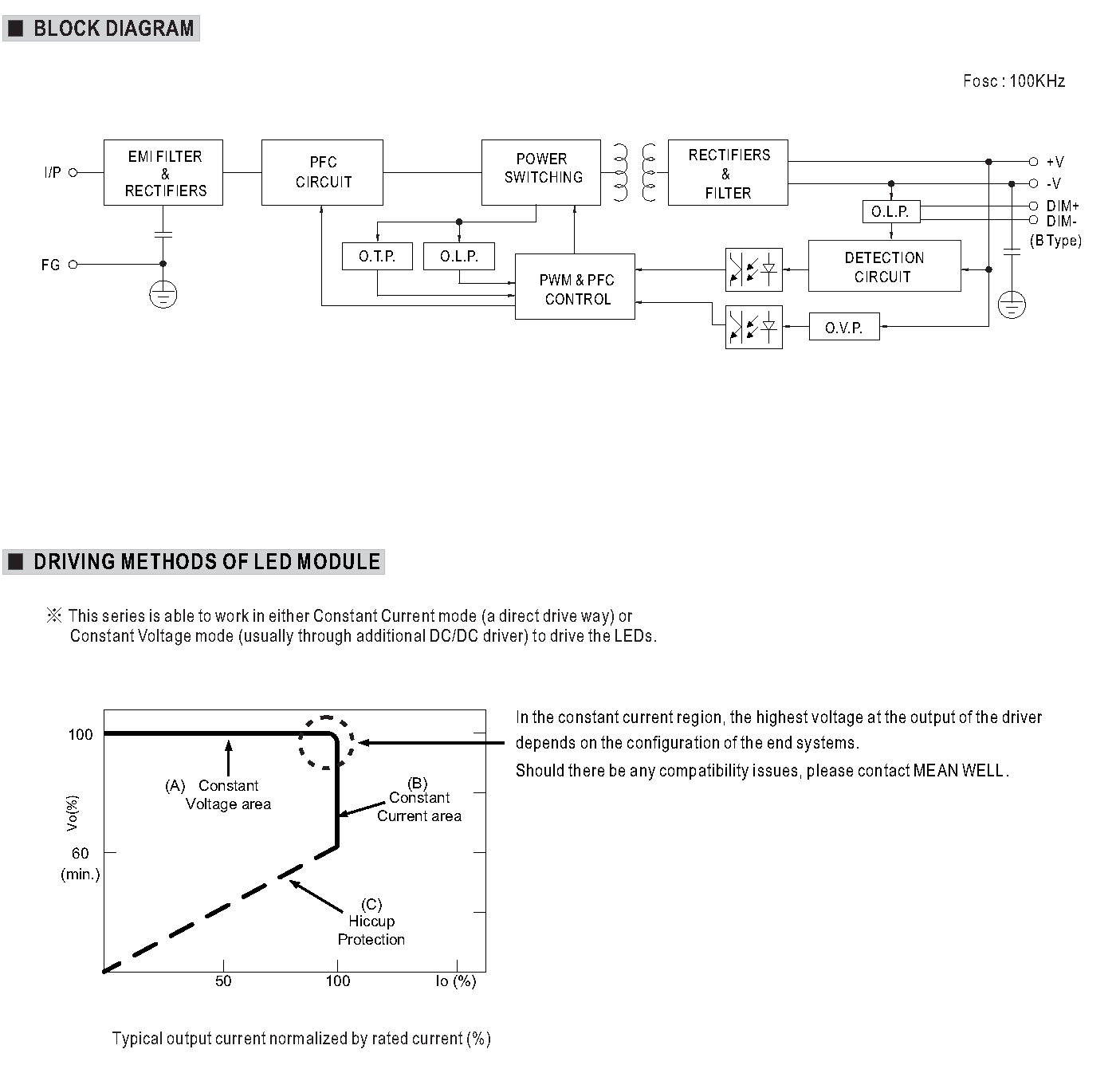

• Constant Voltage + Constant Current mode output

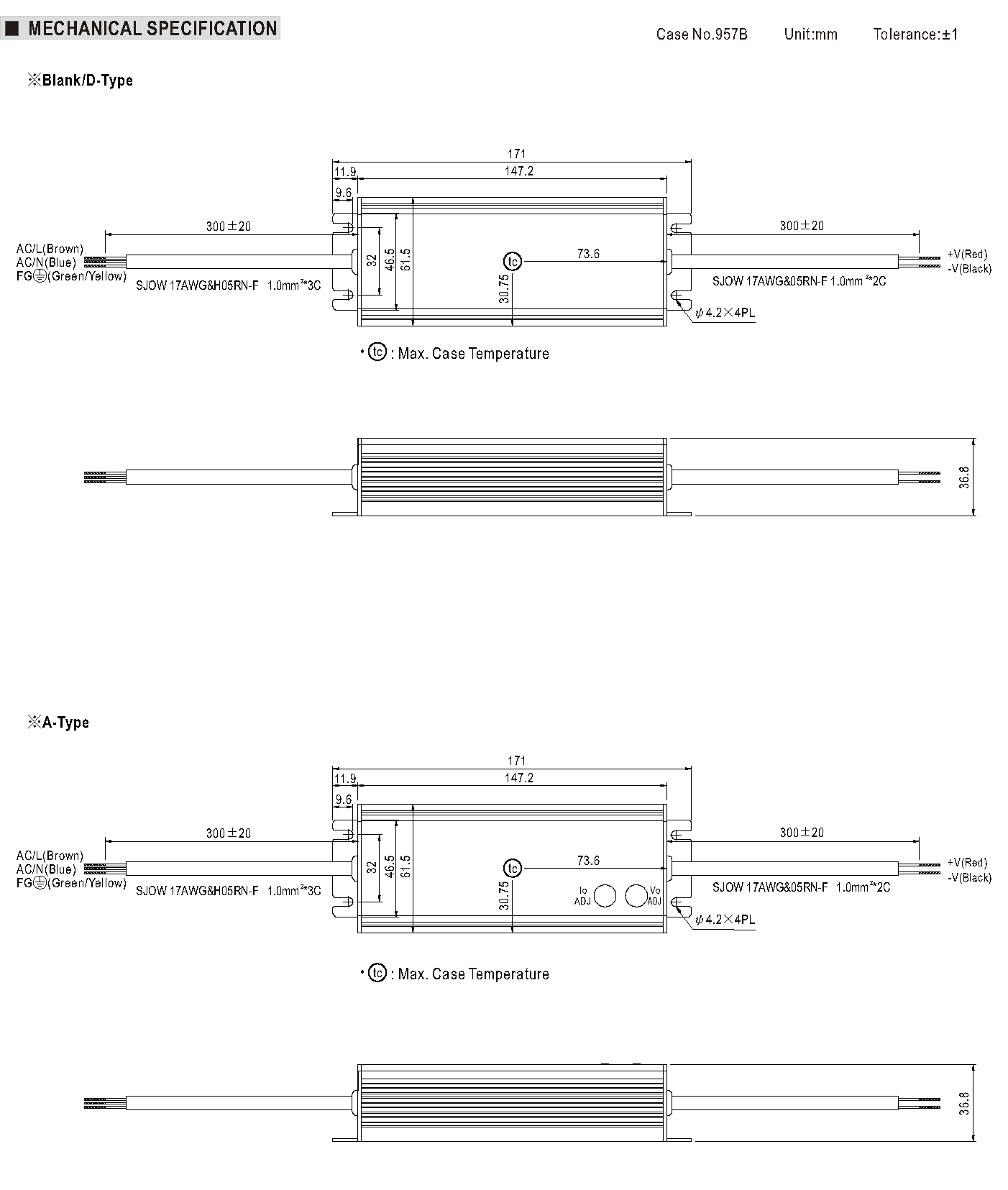

• Metal housing with functional Ground for Class I
• Built-in active PFC function
• Class 2 power unit
• No load / Standby power consumption <0.5W
• IP67 / IP65 rating for indoor or outdoor installations

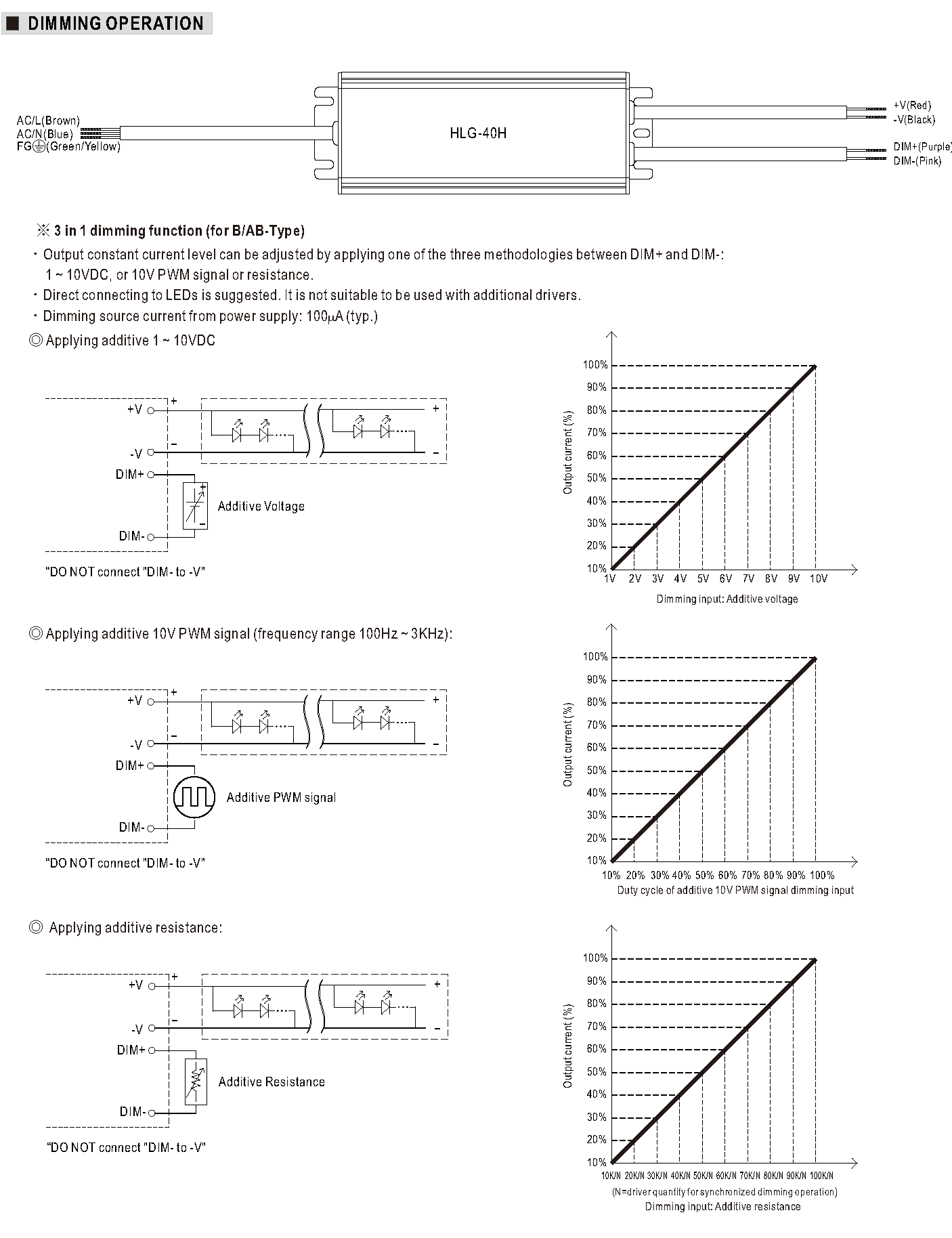

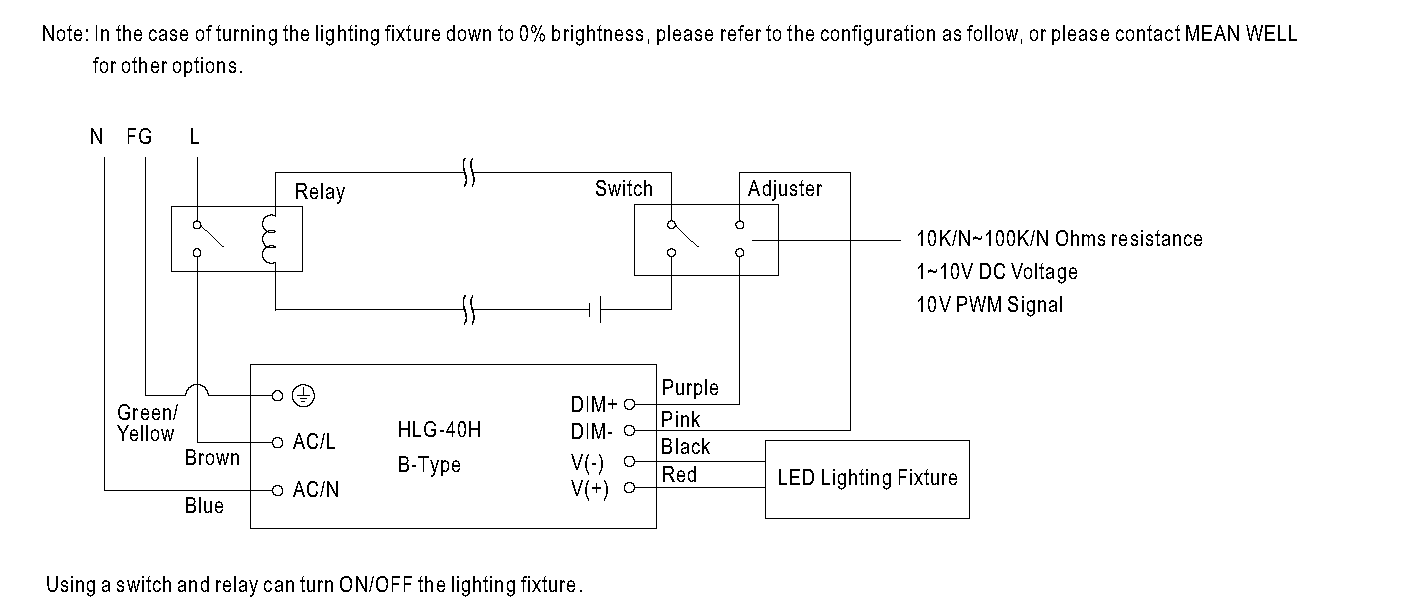

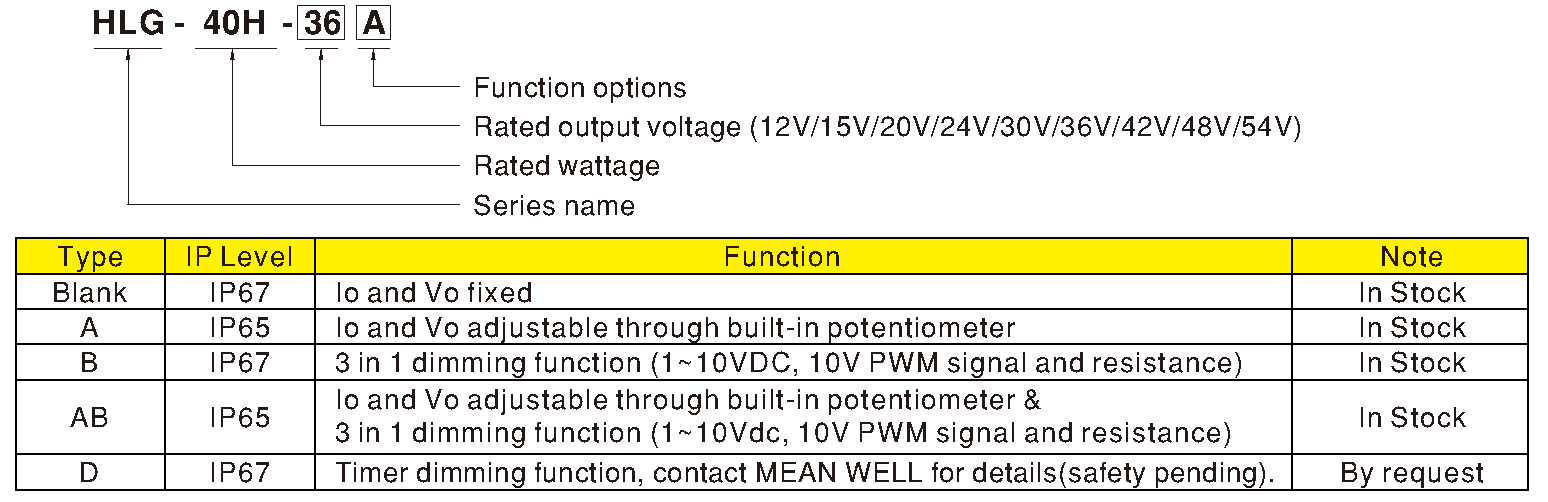

• Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off); Smart timer dimming
• Typical lifetime>62000 hours
• 7 years warranty

Applications

• LED street lighting
• LED industrial lighting
• LED bay lighting
• LED fishing lighting
• LED greenhouse lighting
• Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Description

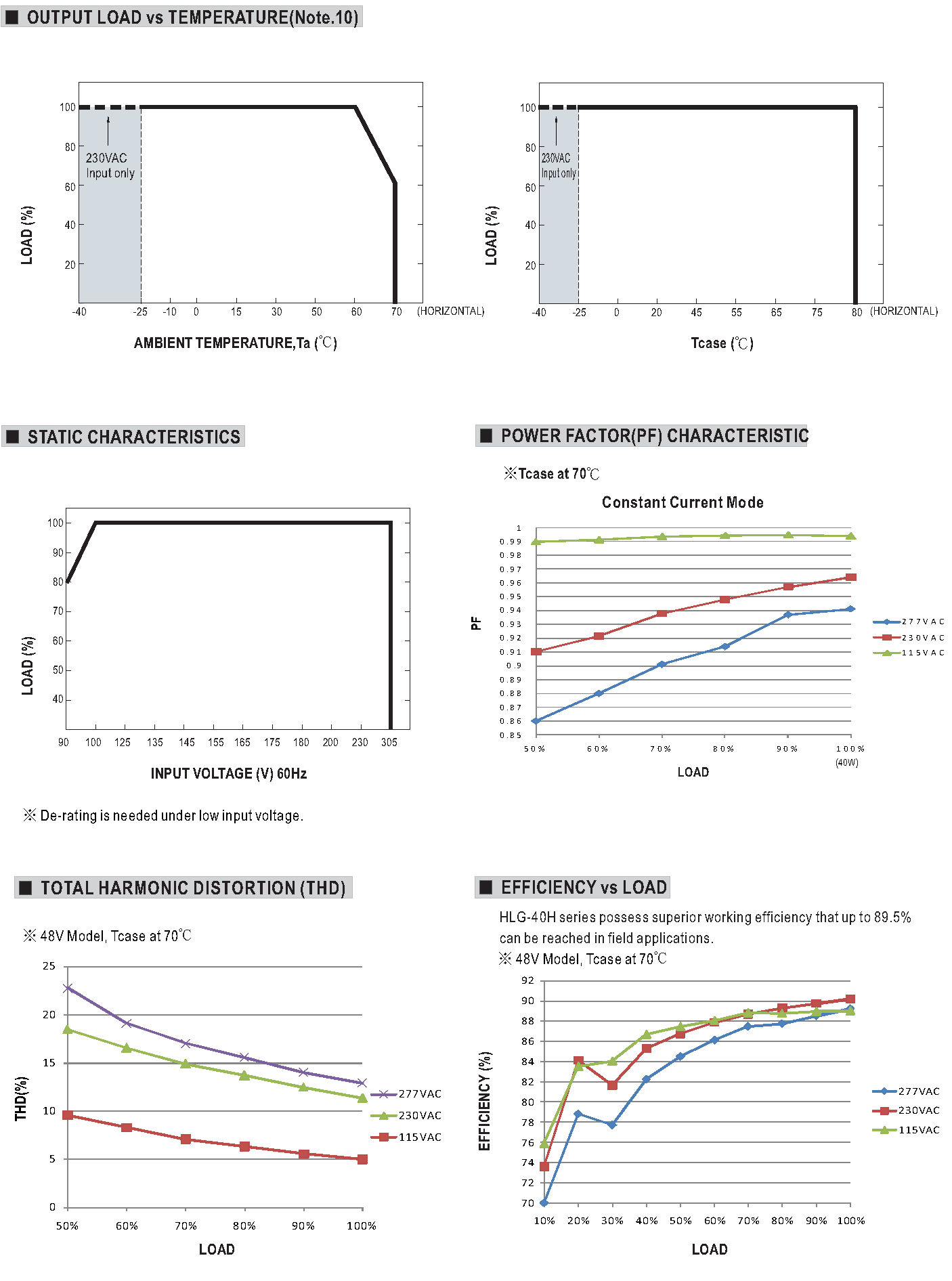

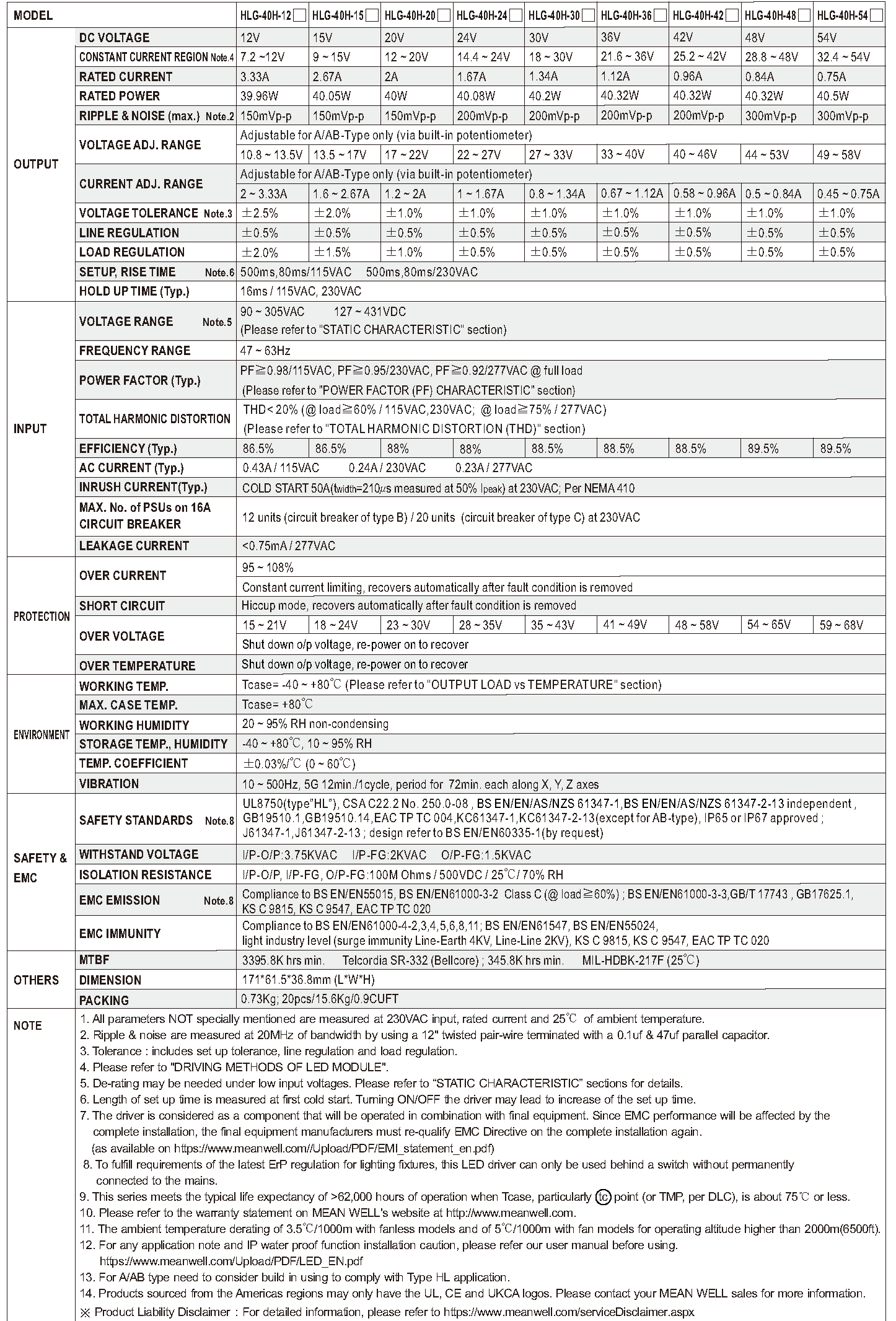

HLG-40H series is a 40W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-40H operates from 90~305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 89.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +80℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-40H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system
