Description
Product Parameter

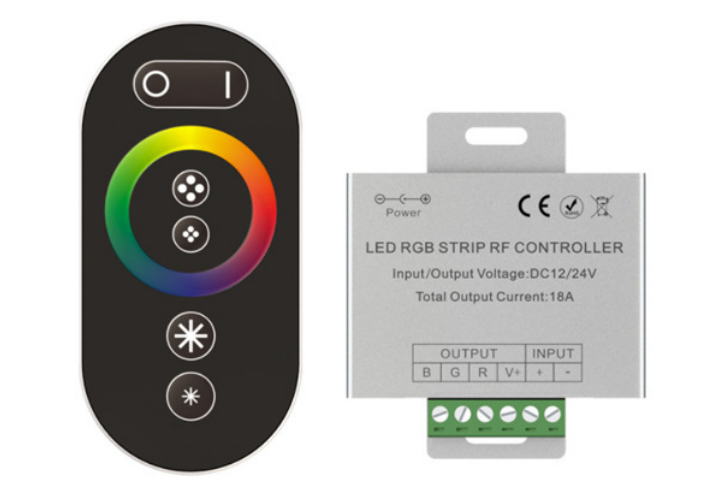

Product Name: Full Touch 6-Key RGB Aluminum Shell Controller
Product Model: AP-007RF
Operating Voltage: DC 12~24V
Output: 3 Channels
Output Power: 12V: <216W, 24V: <432W
Standby Power Consumption: <1W

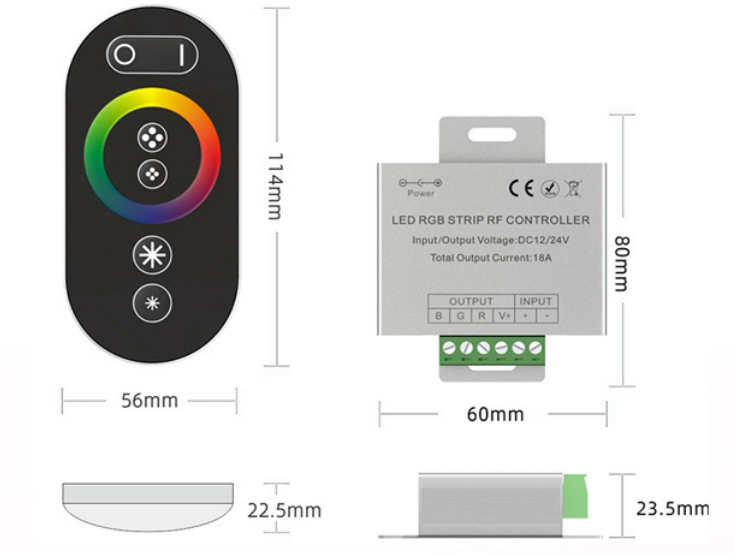

Package Dimensions: 135 * 80 * 55mm
Weight: 150g
Product Features:
The RF metal shell controller is designed to control various LED-based lighting fixtures, such as LED modules, LED strips, LED light boxes, dot lights, etc. It offers easy wiring and simple operation, with built-in memory storage function. Supports mode selection and dynamic speed adjustment via RF remote control, and can achieve lighting effects like jump, gradient, and strobe based on customer requirements.
Connection Diagram & Application Reference

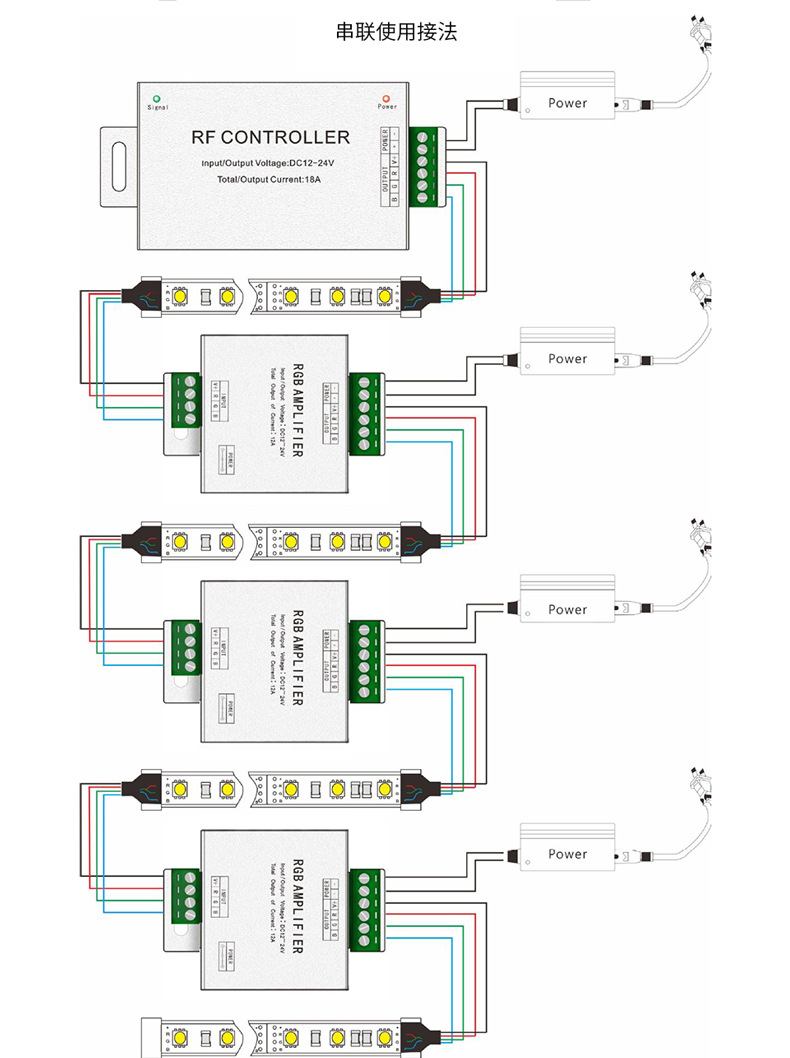

Series Connection Method
