Description
Product Overview

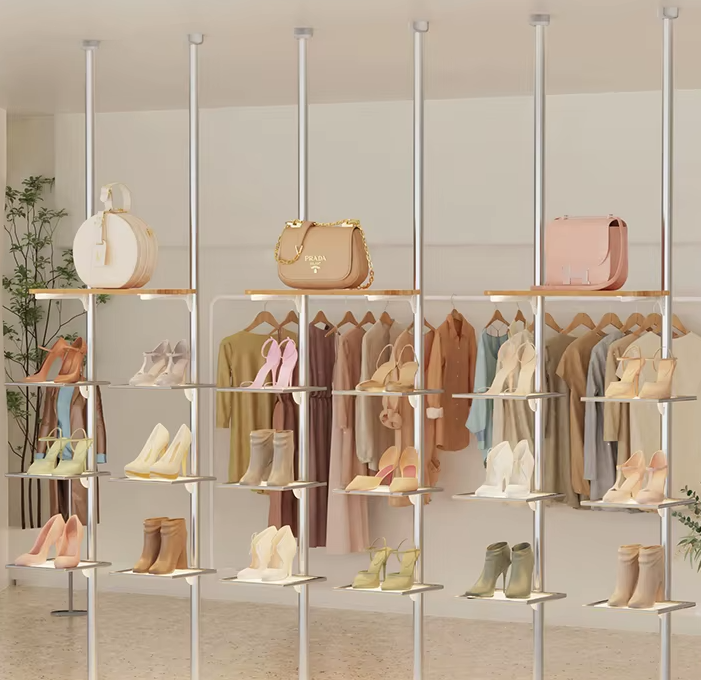

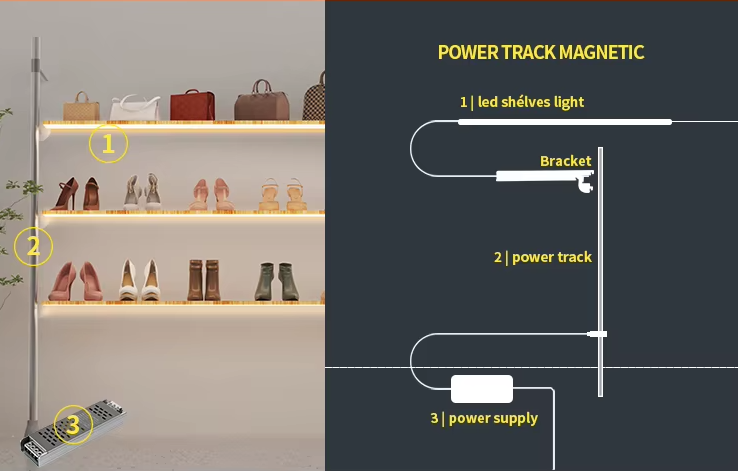

The Cylindrical Power Supply System is designed for shelf lighting with an embedded track integrated into a cylindrical aluminum A-A column (diameter 40 mm).

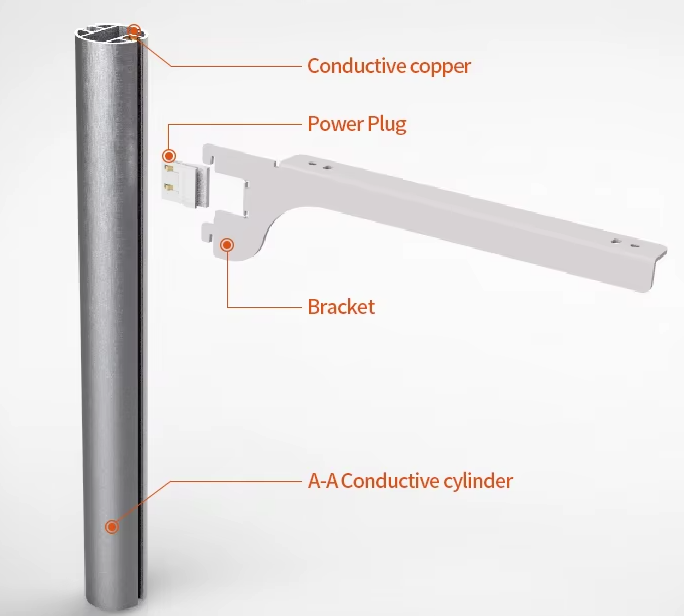

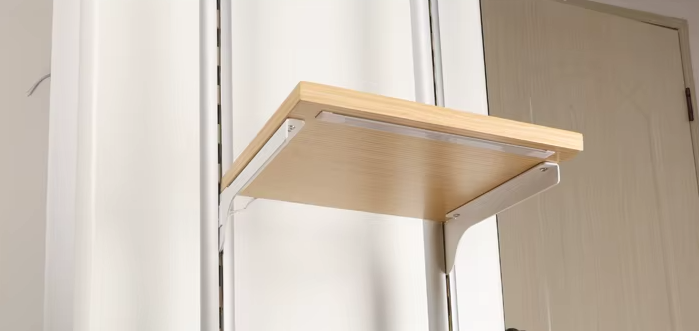

• Shelves’ support arms (tier brackets) simply clip onto the embedded track to power the shelf lighting.
• Maximum system length: up to 3 meters, with custom length options available.
• The system supports customer-specific shelf light modules and can be configured to match various cabinet heights and shelf depths.
Key Features

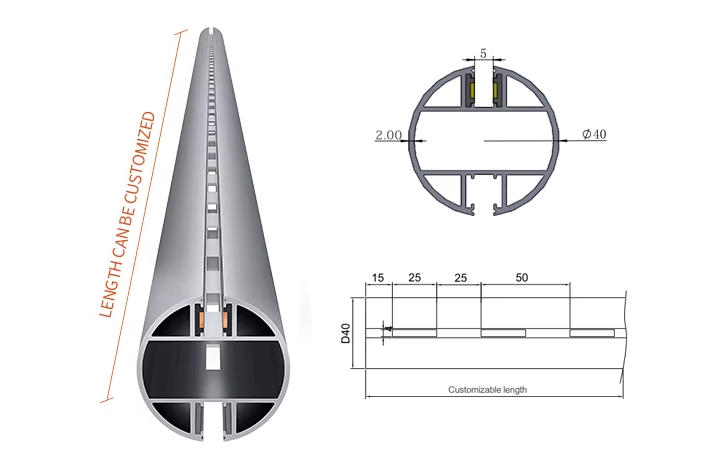

• Inline track integration: Embedded track within a 40 mm diameter aluminum A-A column provides a clean, cable-free aesthetic.

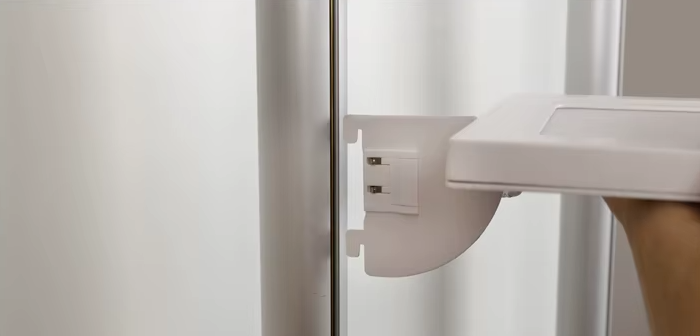

• Clip-on power delivery: Shelf arms clip directly onto the track to complete the electrical connection.
• Customizable length: Up to 3 meters, with length customization to fit project dimensions.
• Flexible power head options: Customer can choose from:
Dupont male/female connectors
DC-5521 male/female connectors
Bare wire (exposed conductors) for direct harnessing by the customer
• Compatibility: Compatible with GLISZEN shelf lighting modules; configurable to accommodate various light specifications.
• Branding and finish: Aluminum cylindrical profile offers robust heat dissipation and a premium look.
Technical Specifications
|
Parameter Category |
Specification | Note |
|---|---|---|
|
Product Model |
GL-DG14-D14 |
– |
|
Guide rail specifications |
Ø40mm cylindrical aluminum column (Type A-A) |
– |
|
Custom Length |
Up to 3 meters long, customizable |
Determine the specific dimensions according to project requirements |
|
Rated current |
To be confirmed (the standard configuration is usually 6A) |
Need to confirm according to the final design plan |
|
Material Composition |
Shell: Aluminum
alloyCore: Stainless steel/corrosion-resistant components |
Select according to the usage environment |
|
Installation Method |
Built-in installation of the upright, shelf arms connected with snap-on clips | – |
|
Interface Options |
DuPont male and female connectors
DC-5521 male and female connectors bare wire interface |
The customer can specify the type of interface. |
|
Compatibility |
Specifically designed for GLISZEN shelf lighting modules |
Electrical parameters of tested lamps can be provided |
| Operating environment | Indoor display shelves |
Must comply with local safety standards |
| Certification Standards | CE and RoHS certification (regional certifications can be provided upon order) |
– |
Customization & Options
• Length: Up to 3 meters; custom lengths available per project.
• Power head interface: Choose between DuPont, DC-5521, or bare-wire, with mounting accessories as needed.
• Shelf light compatibility: Ability to adapt the track to a range of GLISZEN shelf luminaires; specify light metrics (voltage, wattage, LED type) during ordering.
• Finish options: Standard aluminum finish; optional surface treatments or anodizing per project.
Installation Notes
| Step | Key operational points | Precautions |
|---|---|---|
|
1. Embedded guide rail |
Embed the guide rail inside the A-A type column | Ensure that the embedded depth meets the design requirements. |
|
2. Shelf Arm Installation |
The shelf arm accesses the rail with a snap-on buckle to establish an electrical connection. |
Check that the buckle is in place and ensure the contact points are aligned. |
|
3. Wiring Handling |
If bare wires or non-standard connectors are used | Insulation protection and stress relief treatment must be properly carried out. |
| 4. Compliance Inspection | Verify local low-voltage lighting electrical codes before installation |
Ensure compliance with regional safety standards |
| 5. Supporting Documentation | Provide Safety Data Sheets (SDS) and installation instructions with the project |
Ensure that technical documentation is complete and traceable |
Safety & Compliance
CE marking and RoHS compliance are standard for GLISZEN components; additional regional certification CE/RoHS can be provided per target market upon request.
